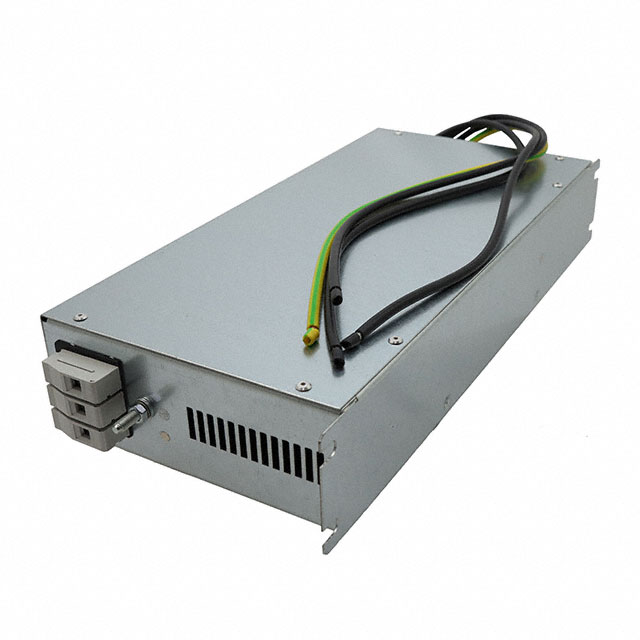

FMBC-0960-3660

$218.68

Description：LINE FILTER 480VAC 36A CHASS MNT
Series：FMBC BOOK STYLE
Mfr：SCHURTER Inc.
Package：Bulk

SKU:a9238d9966c0 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMBC-0960-3660 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 480VAC 36A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMBC-0960-3660

Description：LINE FILTER 480VAC 36A CHASS MNT
Series：FMBC BOOK STYLE
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：480V
Current：36 A
Frequency - Operating：50/60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：L1 - 1.5mH, L2 - 2mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMBC-0960-3660

FMBC-0960-3660

Power Line Filter Modules Overview

The FMBC-0960-3660 is a three-phase two-stage EMC/EMI power line filter module manufactured by SCHURTER Inc. It is rated for a continuous current of 36 A and operates at voltages up to 480 V AC. The unit supports frequencies of 50 Hz and 60 Hz. Designed for chassis mounting, it utilizes terminal block connections for secure installation. This component belongs to the FMBC series and functions as a compact bookform filter for industrial power conditioning applications.

Power Line Filter Modules Feature Summary

Two-stage filtering architecture for enhanced noise suppression
Compact bookform design optimized for space-constrained enclosures
Terminal block interface for reliable electrical connections

Power Line Filter Modules Applications

Industrial machinery power supply protection
Three-phase motor drive systems
Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify that the specific order matches the full part number FMBC-0960-3660 to ensure correct voltage and current ratings. Confirm chassis mounting requirements and terminal block compatibility with existing wiring infrastructure before procurement. Cross-reference datasheet specifications against actual load conditions to prevent operational failure.

Power Line Filter Modules Selection Notes

Select this model when a three-phase solution is required for 480 V AC systems carrying up to 36 A. The two-stage design offers superior attenuation compared to single-stage alternatives. Ensure the application environment accommodates the physical dimensions of the bookform module and allows for adequate thermal dissipation during continuous operation.

Power Line Filter Modules Part Context

This component is part of the FMBC series from SCHURTER Inc., which specializes in power line filters. The FMBC series provides modular solutions for electromagnetic interference suppression in industrial environments. This specific model addresses the needs of three-phase delta configurations requiring robust noise filtering capabilities.
