FMBC-345A-1614

Power Line Filter Modules Overview

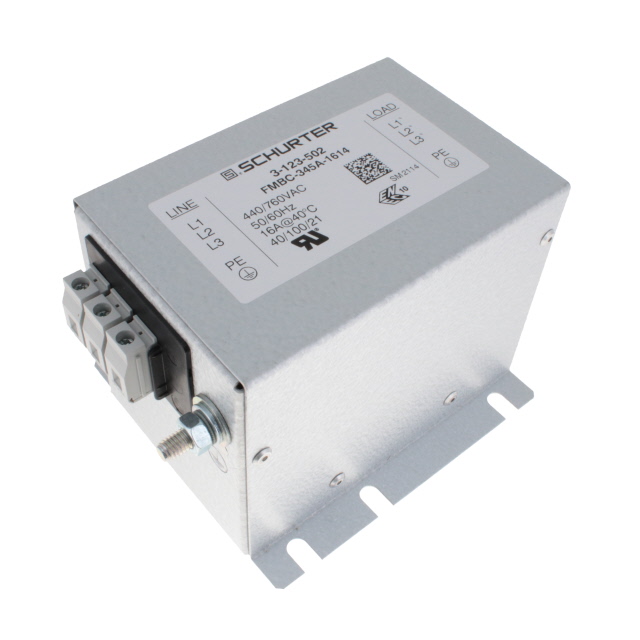

The FMBC-345A-1614 is a three-phase, two-stage RFI filter from the Schurter FMBC NEO series. It supports a maximum current of 16 A and operates at voltages up to 760 V AC with frequencies of 50 Hz and 60 Hz. The unit utilizes screw terminal connections for secure mounting. Key electrical parameters include an inductance of 760 µH and a capacitance value associated with its filtering stage.

Power Line Filter Modules Feature Summary

• Two-stage attenuation design for enhanced noise suppression
• Robust construction suitable for industrial environments
• Screw terminal interface for reliable power connection

Power Line Filter Modules Applications

• Industrial machinery EMC protection
• Three-phase power distribution systems
• Factory automation equipment filtering

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as variants exist within the FMBC NEO series. Confirm that the 16 A current capacity aligns with the load specifications. Ensure the screw terminal type matches the existing wiring infrastructure. Cross-reference the part number to distinguish between different voltage ratings such as 480 V or 760 V models.

Power Line Filter Modules Selection Notes

Select this component when high-voltage three-phase filtering is required. The two-stage architecture provides superior attenuation compared to single-stage alternatives. Verify physical dimensions and mounting constraints before integration. Ensure the operating temperature range meets the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, which focuses on compact and efficient power line filtering solutions. The series is designed for demanding industrial applications requiring robust EMI/RFI suppression. Schurter manufactures these filters to meet international safety and EMC standards.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other FMBC NEO series models with similar current ratings but different voltage specifications. Verify compatibility with existing mounting hardware and terminal configurations before substitution.
