FMBC-394C-J114

Power Line Filter Modules Overview

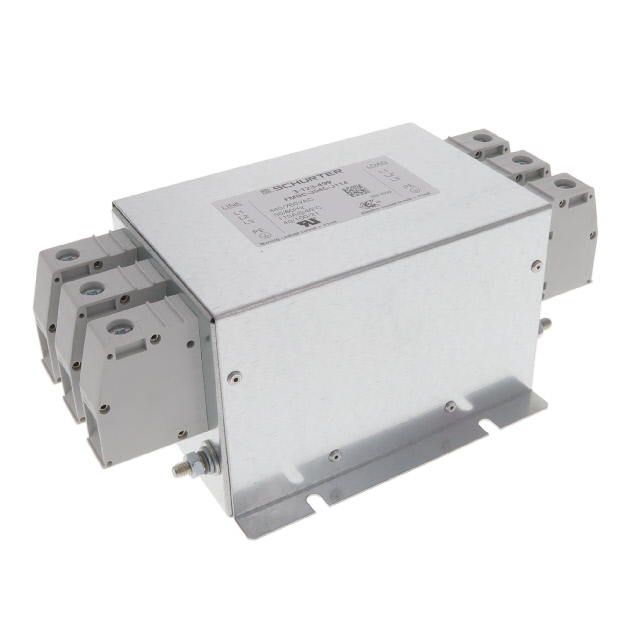

The FMBC-394C-J114 is a three-phase power line filter module manufactured by SCHURTER Inc. It features a two-stage configuration designed for chassis mounting applications. The unit supports a rated AC voltage of 760V and handles a current capacity of 110A. Operating temperatures range from -40°C to 100°C, with frequency operation at 50/60Hz.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture
• Chassis mount design
• Three-phase configuration

Power Line Filter Modules Applications

• General purpose industrial equipment
• Power distribution systems
• Electromagnetic compatibility protection

Power Line Filter Modules Procurement Notes

Verify the specific suffix J114 against official datasheets to confirm terminal type and mounting hardware specifications. Ensure the chassis environment accommodates the operating temperature range of -40°C to 100°C. Confirm that the 110A current rating aligns with the system's maximum load requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component when a robust two-stage solution is required for three-phase circuits operating up to 760VAC. The chassis mount style suits panel integration where space allows. Verify that the 110A continuous current rating meets the application demands without exceeding thermal limits within the specified ambient temperature range.

Power Line Filter Modules Part Context

This model belongs to the FMBC series of power line filter modules from SCHURTER. The series offers various configurations for different phase and current requirements. The FMBC-394C-J114 specifically addresses high-current three-phase needs with a two-stage attenuation profile suitable for demanding industrial environments.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any replacement matches the 760VAC rating, 110A current capacity, and chassis mounting dimensions to ensure functional equivalence.
