FMBC-395A-1614

Power Line Filter Modules Overview

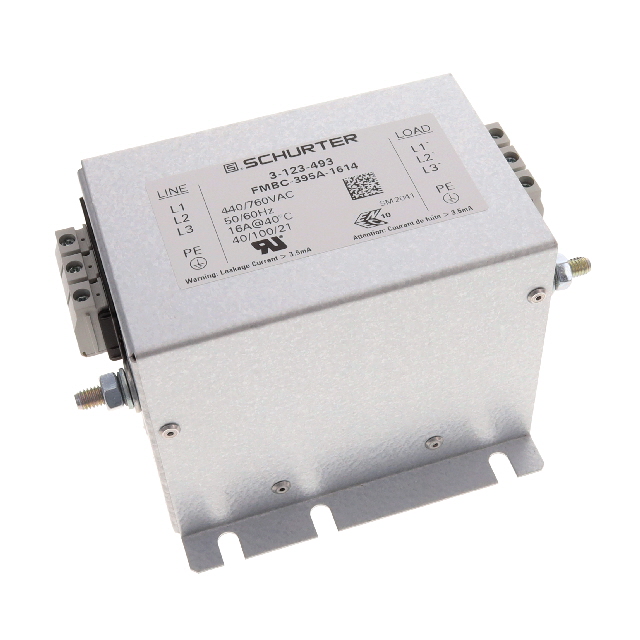

The FMBC-395A-1614 is a three-phase RFI filter from the Schurter FMBC NEO series. It features screw terminal connections and chassis mount installation. The unit supports AC voltages up to 520V and operates at frequencies of 50Hz and 60Hz. Designed for high current applications, it handles a maximum current of 16A. The filter provides two-stage attenuation to suppress electromagnetic interference effectively in industrial power systems.

Power Line Filter Modules Feature Summary

• Two-stage broadband attenuation for effective noise suppression
• Robust screw terminal connection for secure wiring
• Chassis mount design for stable industrial integration

Power Line Filter Modules Applications

• Industrial machinery power supply filtering
• Three-phase motor drive input protection
• Factory automation equipment EMI reduction

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-395A-1614 against official Schurter documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with system voltage and current requirements before procurement. Check for updated compliance certifications relevant to your region.

Power Line Filter Modules Selection Notes

Select this component when a three-phase solution with two-stage filtering is required for currents around 16A. Consider the chassis mount style and screw terminals for robust mechanical connection. Verify that the 520V AC rating meets the application's electrical specifications.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series by Schurter, which specializes in compact and efficient power line filters. The series is designed for demanding industrial environments requiring reliable electromagnetic compatibility. The FMBC-395A-1614 represents a specific configuration within this broader product family.

Power Line Filter Modules Replacement Considerations

Consult Schurter technical documentation for verified substitute part numbers. Ensure any replacement matches the three-phase configuration, current rating, and mounting style. Cross-reference datasheets to confirm identical electrical performance and physical fit.
