FMBC-395A-2512

Power Line Filter Modules Overview

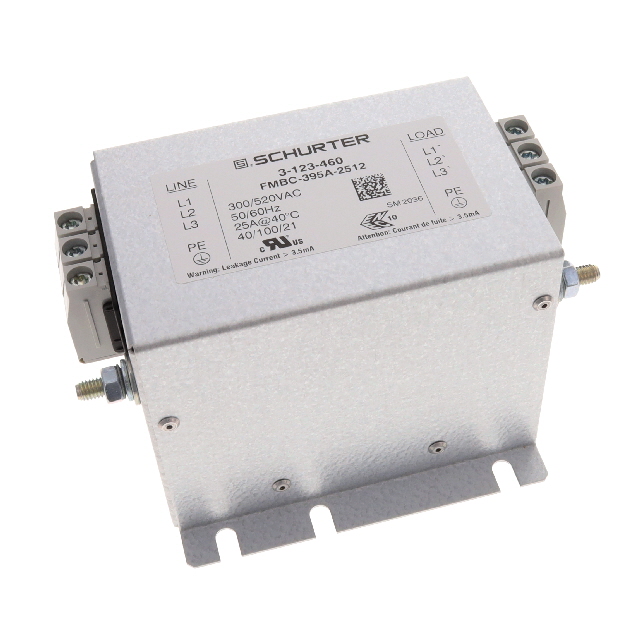

The FMBC-395A-2512 is a three-phase, two-stage EMC/EMI power line filter from the FMBC EP series by Schurter. It supports a rated current of 25 A and operates at voltages up to 520 V AC. Designed for chassis mounting with screw terminals, it functions at 50 Hz and 60 Hz frequencies. The unit complies with UL, VDE, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with screw terminal connections
• Compliant with major international safety and EMC standards

Power Line Filter Modules Applications

• Industrial machinery power distribution
• Medical equipment power supplies
• Automated manufacturing systems

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480V vs 520V) against your system requirements before ordering. Confirm that the chassis mounting dimensions and terminal spacing match your enclosure design. Ensure the installation environment allows for adequate heat dissipation as specified in the thermal data sheet.

Power Line Filter Modules Selection Notes

Select this model when high attenuation across both common and differential modes is required for three-phase systems. Consider the physical size constraints of the chassis mount application. Verify that the 25 A continuous current rating aligns with the maximum load of the protected circuit without derating issues.

Power Line Filter Modules Part Context

This component belongs to the FMBC EP series, which focuses on compact, high-performance EMC filtering solutions. It is part of Schurter's broader portfolio of power line filters designed for industrial and medical applications where strict compliance and reliability are critical.

Power Line Filter Modules Replacement Considerations

Check datasheets for direct pin-compatible or functionally equivalent models within the FMBC series. Verify that any substitute meets the same UL and VDE certifications. Ensure the replacement maintains the two-stage filtering capability and 25 A current rating.
