FMBC-395B-3614

Power Line Filter Modules Overview

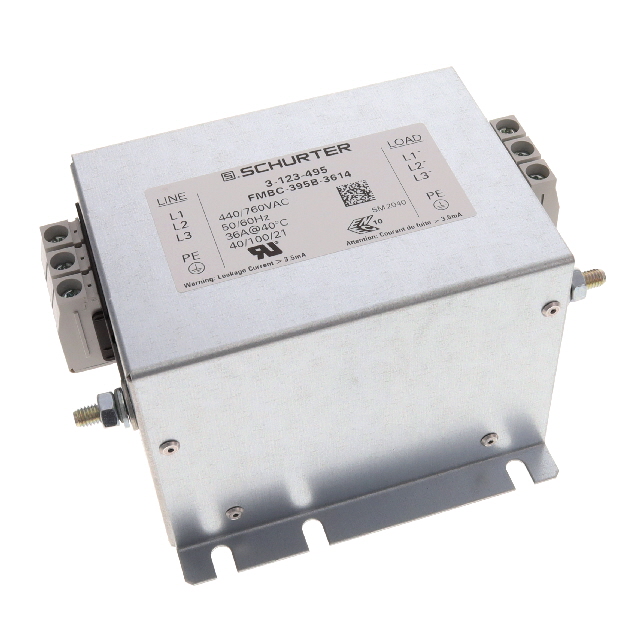

The FMBC-395B-3614 is a three-phase RFI filter from the Schurter FMBC NEO series. It supports a rated AC voltage of 760V and a continuous current of 36A at operating frequencies of 50Hz and 60Hz. The unit features two-stage broadband attenuation with screw terminals for secure connection. Key electrical parameters include a capacitance value of 6.8μF, an inductance of 1.9mH, and a leakage current of 33mA. Physical dimensions are 275mm in length, 85mm in height, and 50mm in depth. It operates within a temperature range of -25°C to 100°C.

Power Line Filter Modules Feature Summary

• Provides two-stage broadband attenuation for effective radio frequency interference suppression
• Designed for robust industrial environments with screw terminal connections
• Compact form factor suitable for integration into power distribution systems

Power Line Filter Modules Applications

• Industrial machinery power supplies
• Three-phase motor drive systems
• Power distribution units requiring EMI reduction

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Schurter documentation to confirm ratings. Ensure compatibility with system voltage and current requirements before procurement. Check for updated compliance certifications such as UL1283. Confirm physical mounting constraints match the specified dimensions. Validate that the supplier provides genuine components with traceable origin.

Power Line Filter Modules Selection Notes

Select this model when high current capacity and two-stage filtering are required for three-phase applications. Compare leakage current specifications against safety standards for sensitive equipment. Evaluate thermal performance within the specified operating temperature range. Consider the physical footprint relative to available enclosure space. Verify terminal type compatibility with existing wiring infrastructure.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, which offers compact and efficient EMC solutions. The series includes various configurations for single and three-phase applications. Schurter designs these filters to meet stringent international standards for electromagnetic compatibility. The product line focuses on providing reliable noise suppression for industrial and commercial power systems.

Power Line Filter Modules Replacement Considerations

FMBC-395B-3614 is functionally similar to FMBC-A91Q-3010 but differs in current rating (36A vs 30A) and voltage rating (760V vs 520V). Verify that the replacement meets or exceeds the original system's electrical requirements. Ensure mechanical mounting interfaces are compatible. Cross-reference datasheets for exact attenuation curves and leakage current values.
