FMBC-395B-5014

Power Line Filter Modules Overview

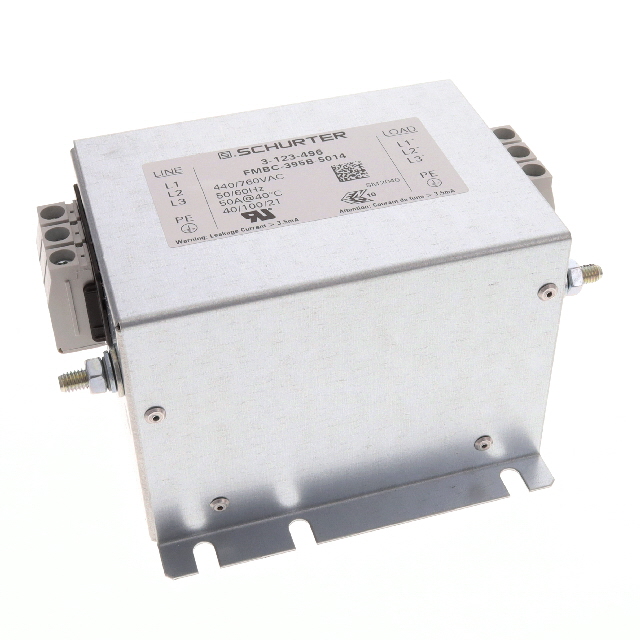

The FMBC-395B-5014 is a three-phase RFI filter from the Schurter FMBC NEO series, rated for 50 A and 760 VA. It operates at 520 V AC with 50/60 Hz frequency support. Key electrical parameters include 6.8 μF capacitance, 1.9 mH inductance, and 33 mA leakage current. The unit features screw terminals, measures 275 x 85 x 50 mm, and withstands temperatures from -25°C to 100°C. Power loss is 6.8 W with 2.5 mΩ resistance. It complies with UL1283 standards.

Power Line Filter Modules Feature Summary

• Two-stage attenuation design for effective electromagnetic interference suppression
• Robust construction suitable for demanding industrial environments
• Secure screw terminal connection method for reliable power integration

Power Line Filter Modules Applications

• Industrial machinery power supply filtering
• Three-phase motor drive systems
• Heavy-duty manufacturing equipment EMC compliance

Power Line Filter Modules Procurement Notes

Verify the exact part number FMBC-395B-5014 against official Schurter documentation to ensure correct specifications. Confirm voltage ratings, current capacity, and mounting requirements match your system needs before procurement. Check for RoHS compliance status and relevant safety certifications such as UL1283. Ensure compatibility with existing thermal management and physical space constraints.

Power Line Filter Modules Selection Notes

Select this component when high current handling up to 50 A is required for three-phase applications. Consider its two-stage filtering capability for superior noise reduction compared to single-stage alternatives. Evaluate the physical dimensions and screw terminal configuration for panel or chassis mounting suitability. Verify that the operating temperature range meets environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series of three-phase line filters manufactured by Schurter Inc. The series is designed for general-purpose industrial applications requiring robust EMI suppression. It represents a specialized solution within Schurter's broader portfolio of passive components and EMC products, focusing on high-current power line filtering.

Power Line Filter Modules Replacement Considerations

Consult Schurter technical documentation for verified substitute part numbers. Ensure any replacement matches the 50 A rating, 520 V AC specification, and three-phase configuration. Verify dimensional compatibility and terminal type equivalence to maintain installation integrity.
