FMBC-A91G-J010

Power Line Filter Modules Overview

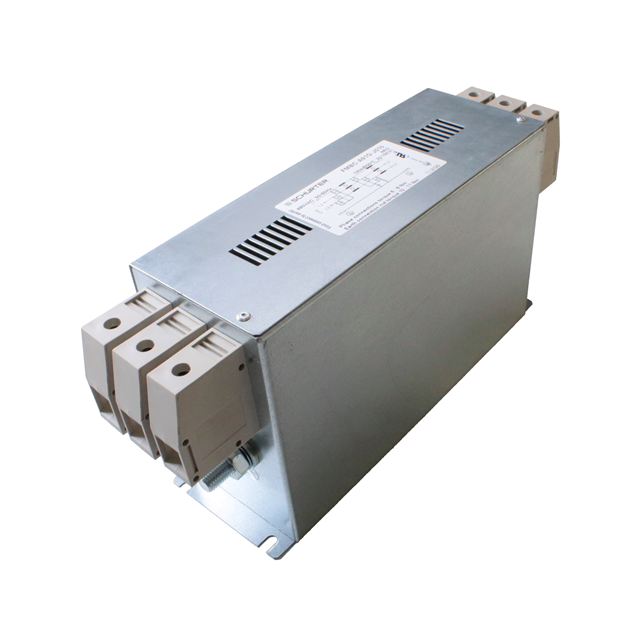

The FMBC-A91G-J010 is a three-phase, two-stage power line filter from the Schurter FMBC NEO series. It features a current rating of 100 A and operates at frequencies of 50/60 Hz with a maximum voltage of 520 VAC. The unit utilizes screw terminals for connection and supports chassis mounting. Physical dimensions are approximately 240x90x150 mm, with an operating temperature range of -25°C to 100°C.

Power Line Filter Modules Feature Summary

• Two-stage EMC/EMI filtering architecture for enhanced noise suppression
• Screw terminal connections for secure electrical interfacing
• Chassis mount design for industrial integration

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Factory automation equipment

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against the official datasheet to ensure correct terminal type and mounting configuration. Confirm that the application voltage does not exceed the rated 520 VAC limit. Check RoHS compliance status if required by project specifications. Ensure physical clearance matches the 240x90x150 mm footprint before procurement.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is required in compact enclosures. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the 100 A continuous current rating aligns with the load requirements. Consider the thermal management needs given the -25°C to 100°C operating range.

Power Line Filter Modules Part Context

This model belongs to the FMBC NEO series, designed for robust industrial environments. It serves as a specialized solution for mitigating electromagnetic interference in three-phase AC power systems. The series emphasizes durability and precise filtering performance for sensitive electronic loads connected to heavy-duty power sources.

Power Line Filter Modules Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitutes. Ensure any replacement maintains the 100 A current rating and two-stage topology. Verify dimensional compatibility for existing chassis mounts.
