FMW-81-0001

Power Line Filter Modules Overview

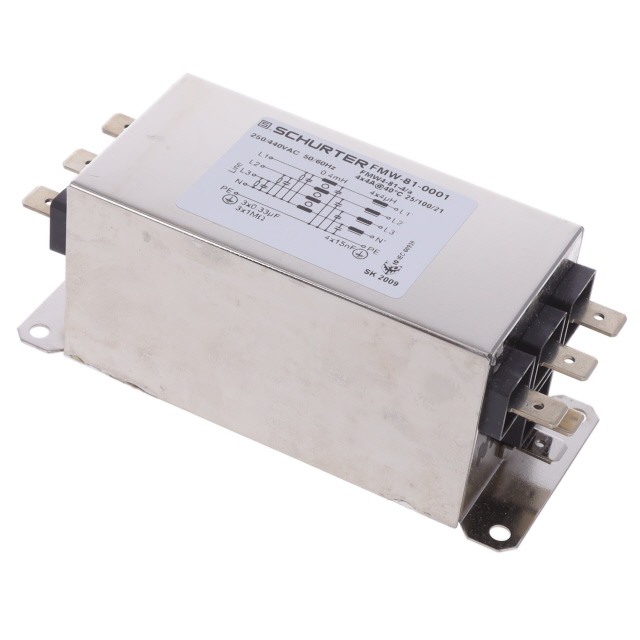

The SCHURTER FMW-81-0001 is a three-phase (Wye) EMC/EMI line filter module designed for industrial applications. It provides two-stage attenuation with a rated current of 4 A and operates at voltages up to 250 VAC and 440 VAC. The unit supports frequencies of 50 Hz and 60 Hz, features quick connect terminals, and utilizes chassis mounting for secure installation.

Power Line Filter Modules Feature Summary

• Provides two-stage electromagnetic interference attenuation for three-phase power lines
• Designed for Wye configuration systems with quick connect termination
• Supports dual voltage ratings for versatile global deployment

Power Line Filter Modules Applications

• Industrial machinery requiring EMI suppression
• Three-phase power distribution systems
• Equipment sensitive to electromagnetic noise

Power Line Filter Modules Procurement Notes

Verify the specific phase configuration requirement before procurement. Confirm that the application voltage does not exceed the 440 VAC rating. Ensure the mounting environment accommodates the chassis mount style. Check terminal compatibility with existing wiring harnesses.

Power Line Filter Modules Selection Notes

Select this model for three-phase Wye systems requiring moderate current handling. Compare against single-phase alternatives if the system topology differs. Consider thermal management requirements based on the 4 A continuous load. Verify enclosure space for chassis mounting dimensions.

Power Line Filter Modules Part Context

This component belongs to the FMW series of power line filter modules from SCHURTER. The series offers various configurations for single and three-phase applications. These modules integrate filtering capabilities directly into power entry points to ensure compliance with electromagnetic compatibility standards.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
