FMWAN090-15SM

Antennas RF Overview

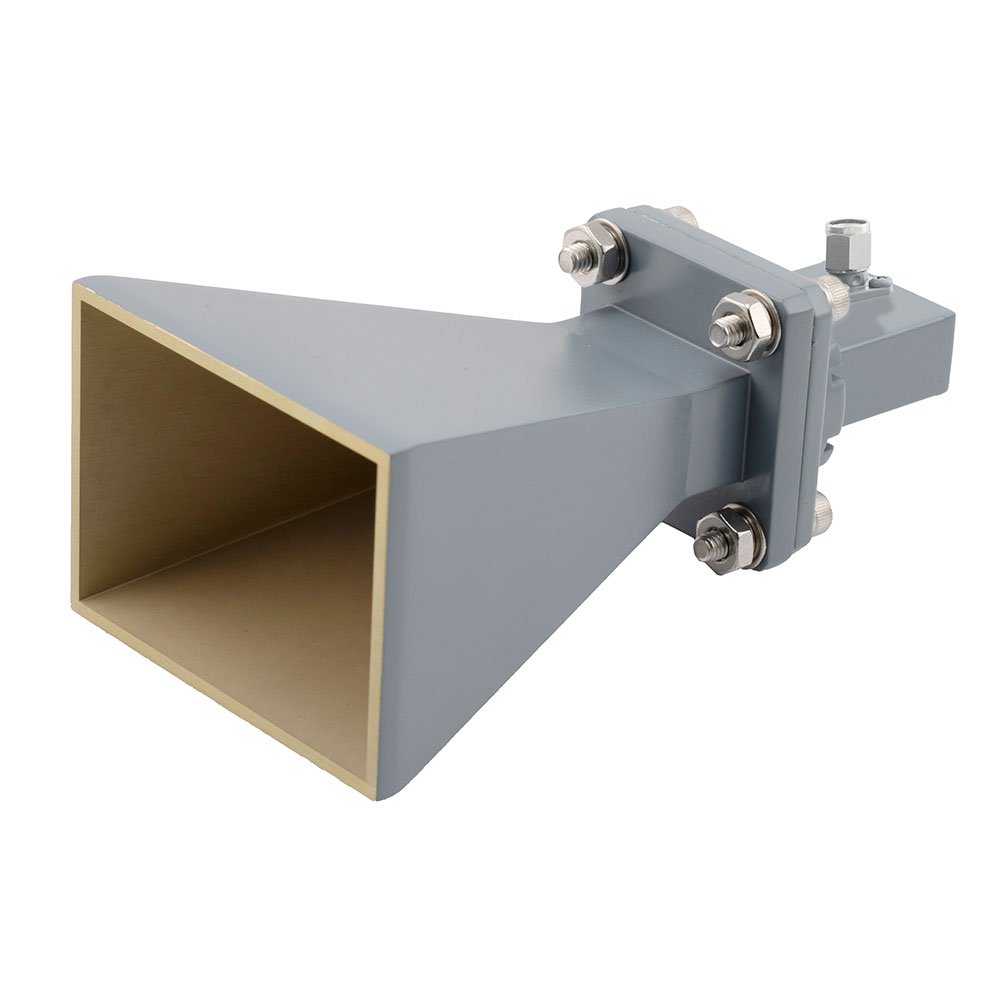

The FMWAN090-15SM is a standard gain horn antenna manufactured by Fairview Microwave, designed for the WR-90 waveguide frequency band. It features an SMA male coaxial interface and provides a nominal gain of 15 dBi. The operational frequency range spans from 8.2 GHz to 12.4 GHz. Constructed as a waveguide mount antenna, it facilitates high-frequency signal transmission within defined microwave applications.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-90 waveguide frequencies
• SMA male connector interface for coaxial integration
• Nominal 15 dBi gain performance across the operating band

Antennas RF Applications

• Microwave test and measurement setups
• Wireless communication system testing
• Radar system calibration and evaluation

Antennas RF Procurement Notes

Verify the specific SMA male interface compatibility with existing test equipment before procurement. Confirm that the WR-90 waveguide dimensions align with the intended mounting infrastructure. Ensure the 8.2 GHz to 12.4 GHz frequency range meets the specific application requirements. Check for any environmental sealing needs if used in non-laboratory settings.

Antennas RF Selection Notes

Select this model when a fixed 15 dBi gain is required for WR-90 band operations. Consider the SMA male interface for direct coaxial connection without additional adapters. Evaluate the physical size constraints against available space in the test setup. Compare against other horn variants if variable gain or different polarization is needed.

Antennas RF Part Context

This component belongs to the Fairview Microwave RF antenna category, specifically within the waveguide horn sub-segment. It complements other WR-90 accessories such as shims and flanges. The product line focuses on precision microwave interconnects and antennas for professional engineering environments.
