FMWAN229-10NF

$1,145.29

Description：WG ANTENNA WG COAX ADAPT WR-229-
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:a526491ee2d1 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMWAN229-10NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WG COAX ADAPT WR-229-. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMWAN229-10NF

Description：WG ANTENNA WG COAX ADAPT WR-229-
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：4.1GHz
Frequency Range：3.3GHz ~ 4.9GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：10dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：2.790" (70.87mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for FMWAN229-10NF

FMWAN229-10NF

Antennas RF Overview

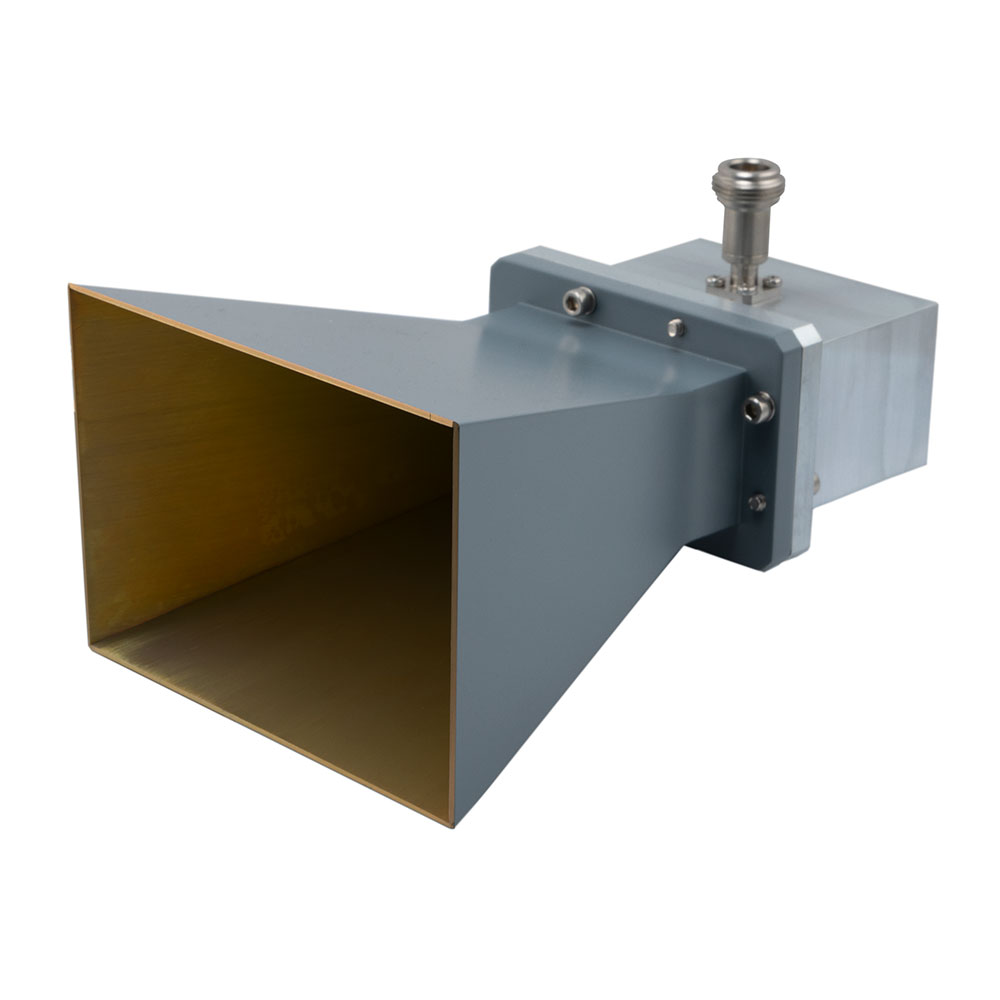

The Fairview Microwave FMWAN229-10NF is a WR-229 standard gain horn antenna designed for operation within the 3.3 GHz to 4.9 GHz frequency range. It features an N female connector and utilizes a CMR-229 flange for mounting. The component provides a nominal gain of 10 dBi, ensuring efficient signal transmission in this band. Constructed as a general-purpose horn antenna, it supports waveguide integration with standard interface specifications.

Antennas RF Feature Summary

Standard gain horn design optimized for the WR-229 waveguide band
N female connector interface for direct cable attachment
CMR-229 flange configuration for standardized mechanical mounting

Antennas RF Applications

General purpose RF signal transmission
Waveguide system integration
Antenna testing and measurement setups

Antennas RF Procurement Notes

Verify the specific model suffix to confirm the connector gender and type. Ensure the CMR-229 flange specification matches the receiving equipment interface requirements. Confirm operational frequency alignment with the 3.3 GHz to 4.9 GHz range before procurement.

Antennas RF Selection Notes

Select this model when a 10 dBi gain is required for the WR-229 band. Choose based on the necessity for an N female connector rather than other waveguide interfaces. Consider the CMR-229 flange compatibility with existing mount structures.

Antennas RF Part Context

This component belongs to the Fairview Microwave standard gain horn antenna series. It serves as a passive RF device for directing electromagnetic waves. The product line focuses on reliable performance across defined microwave frequency bands using standardized waveguide dimensions.
