FMWPR010-7

$1,347.84

Description：WG ANTENNA WR-10 75-110 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:b1537b226460 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMWPR010-7 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WR-10 75-110 GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMWPR010-7

Description：WG ANTENNA WR-10 75-110 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：92.5GHz
Frequency Range：75GHz ~ 110GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：6.5dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：1.000" (25.40mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for FMWPR010-7

FMWPR010-7

Antennas RF Overview

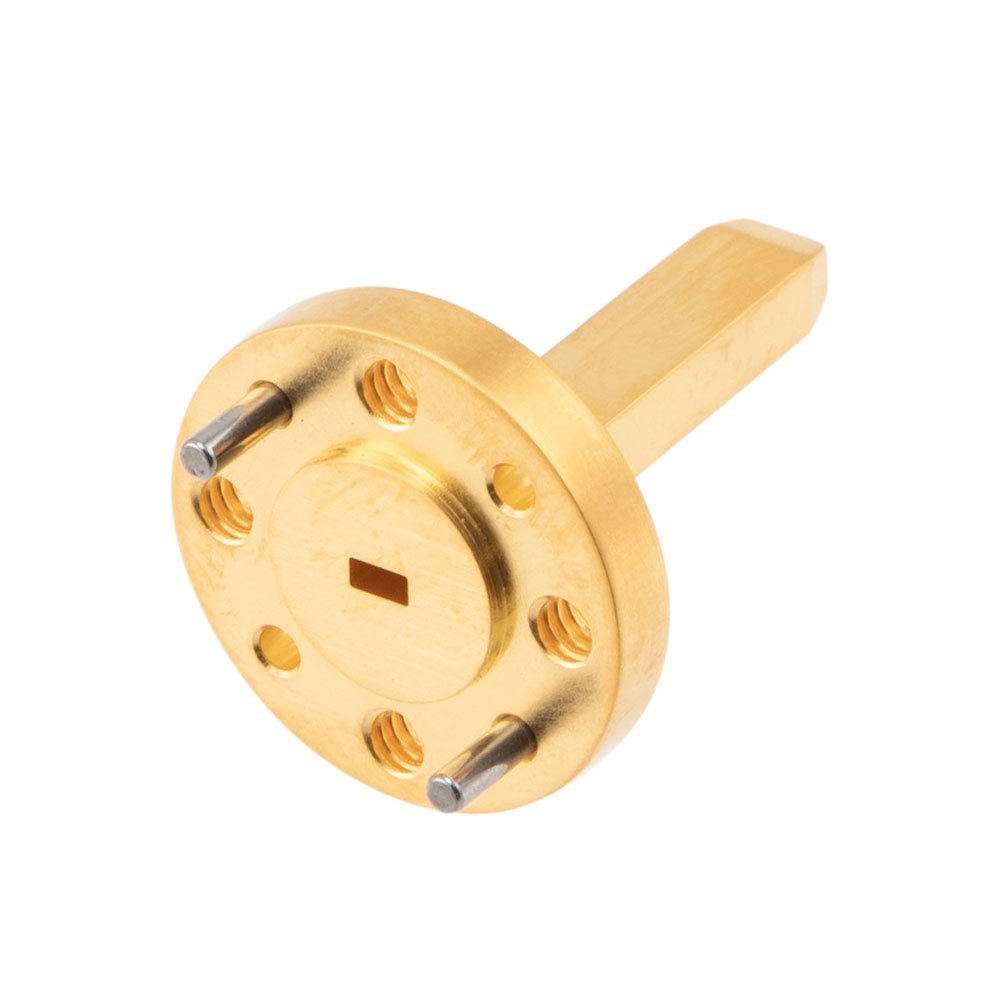

The FMWPR010-7 is a WR-10 waveguide probe antenna manufactured by Fairview Microwave. It operates within the frequency range of 75 GHz to 110 GHz. The component is classified as a waveguide horn and belongs to the RF Interconnects subcategory under Signal Conditioning. It is RoHS compliant and designed for high-frequency signal transmission applications.

Antennas RF Feature Summary

Functions as a WR-10 waveguide probe antenna
Operates in the 75 GHz to 110 GHz frequency band

Antennas RF Applications

High-frequency signal transmission
Waveguide system integration
RF interconnect applications

Antennas RF Procurement Notes

Verify RoHS compliance status and ECCN classification before procurement. Confirm that the WR-10 waveguide interface matches system requirements. Check for specific datasheet documentation regarding mechanical dimensions and mounting specifications to ensure proper integration into the target application environment.

Antennas RF Selection Notes

Select this component when a WR-10 waveguide probe antenna is required for operation between 75 GHz and 110 GHz. Ensure compatibility with existing waveguide flanges and mating connectors. Consider environmental factors and mechanical constraints associated with high-frequency waveguide installations.

Antennas RF Part Context

This part is categorized under RF Interconnects and Signal Conditioning by Fairview Microwave. It serves as a specialized waveguide component for millimeter-wave frequencies. The product supports traceability requirements and adheres to standard compliance regulations for electronic components.
