FP0705R2-R15-R

Fixed Inductors Overview

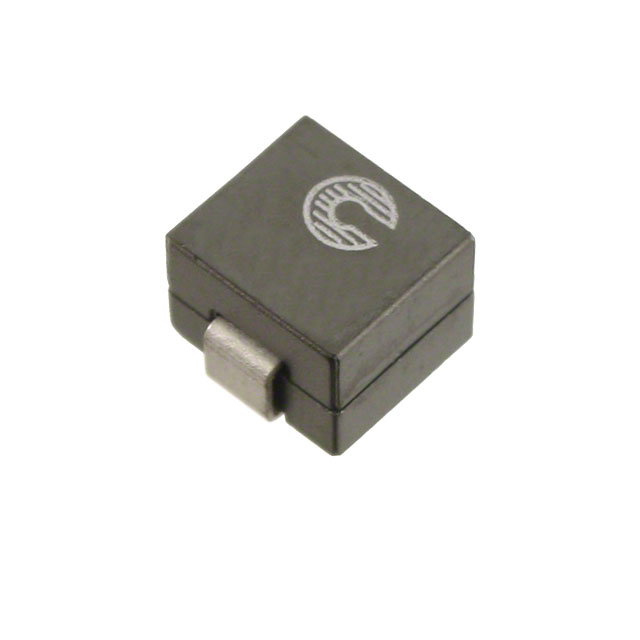

The Eaton FP0705R2-R15-R is an unshielded drum core wirewound power inductor from the Flat-Pac FP0705 series. It features a nominal inductance of 150 nH with a ±10% tolerance. The component supports a maximum DC current of 38 A and has a maximum DC resistance of 0.32 mΩ. Measuring 7.00 mm x 7.00 mm with a height of 4.95 mm, it utilizes ferrite core material and operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Unshielded drum core construction for high-frequency performance
• High current handling capability suitable for power applications
• Surface mount design optimized for PCB integration

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter stages
• High-frequency chokes

Fixed Inductors Procurement Notes

Verify the specific suffix 'R' indicates reel packaging when ordering. Confirm the manufacturer part number matches exactly to ensure correct electrical characteristics. Check RoHS compliance status as required by project specifications. Ensure compatibility with standard surface mount assembly processes.

Fixed Inductors Selection Notes

Select this component for designs requiring low inductance values under 200 nH. Consider the 38 A current rating against peak load requirements. Evaluate the 0.32 mΩ DCR for efficiency constraints. Verify footprint dimensions fit the target PCB layout area.

Fixed Inductors Part Context

This part belongs to the Eaton Flat-Pac FP0705 series of high-power surface mount inductors. The series offers various inductance values tailored for demanding power electronics applications. The FP0705 form factor provides a compact solution for high-current density designs.

Fixed Inductors Replacement Considerations

Consult official Eaton documentation for verified cross-references. Generic substitutes may not match the specific current or saturation characteristics.
