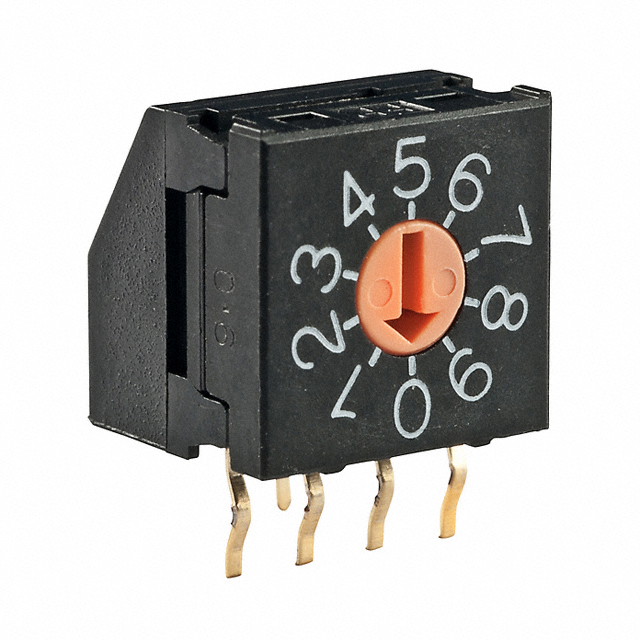

Dip Switches FR01FR10H-06XL-S product image

FR01FR10H-06XL-S

$4.96

Description：SWITCH ROTARY DIP BCD 0.1A 5V
Series：FR01
Mfr：NKK Switches
Package：Tube

SKU:602d5843bd82 Category: DIP Switches Brand: NKK Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FR01FR10H-06XL-S is listed in the Dip Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH ROTARY DIP BCD 0.1A 5V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for FR01FR10H-06XL-S

Description：SWITCH ROTARY DIP BCD 0.1A 5V
Series：FR01
Mfr：NKK Switches
Package：Tube
Circuit：BCD
Number of Positions：10
Current Rating (Amps)：100mA
Voltage Rating：5VDC
Actuator Type：Rotary for Tool
Actuator Level：Flush, Recessed
Contact Material：Copper Alloy
Contact Finish：Gold
Height Above Board：0.394" (10.00mm)
Mounting Type：Through Hole, Right Angle
Termination Style：PC Pin
Pitch：0.100" (2.54mm), Full
Washable：No
Features：-
Operating Temperature：-25°C ~ 85°C

Dip Switches datasheet and documents for FR01FR10H-06XL-S
