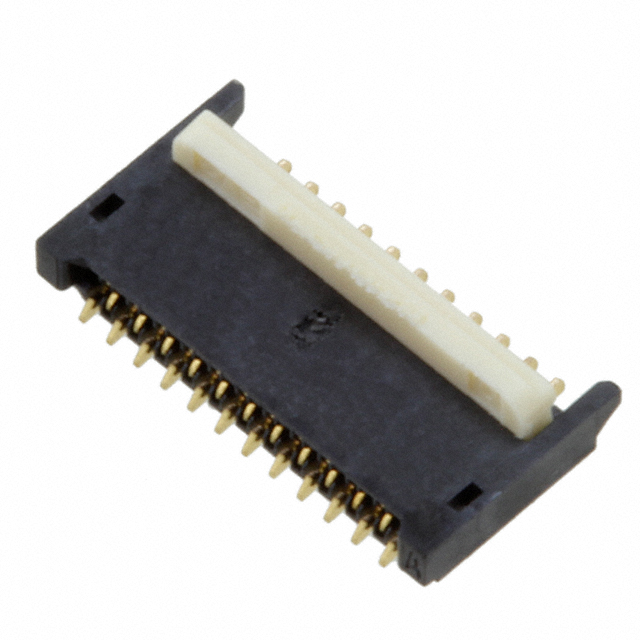

FR02C023JA1-R5000

FR02C023JA1-R5000 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC 23POS 0.2MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FR02C023JA1-R5000

• Description：CONN FPC 23POS 0.2MM R/A
• Series：FR02
• Mfr：JAE Electronics
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：23
• Pitch：0.008" (0.20mm)
• Termination：Solder
• FFC, FCB Thickness：0.20mm
• Height Above Board：0.032" (0.81mm)
• Locking Feature：Flip Lock, Backlock
• Cable End Type：Tabbed or Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Plastic
• Actuator Material：Plastic
• Features：Low Insertion Force (LIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：-

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FR02C023JA1-R5000
