FSB-20-324

Power Line Filter Modules Overview

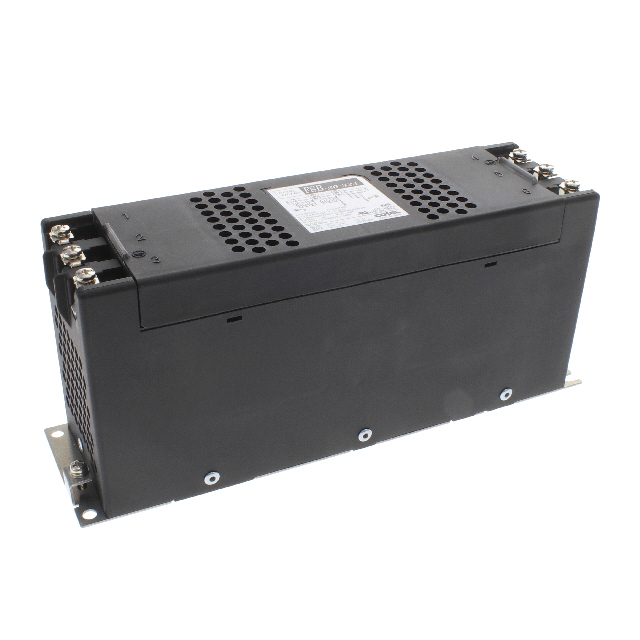

The FSB-20-324 is a three-phase (Delta) EMI/EMC line filter module manufactured by Cosel USA, Inc. It is designed for chassis mounting and supports a continuous current of 20 A at voltages up to 500 VAC or VDC. The unit operates within a frequency range of 50/60 Hz and utilizes a two-stage filtering architecture to suppress electromagnetic interference. Connection is facilitated via terminal block interfaces, ensuring secure integration into industrial power distribution systems.

Power Line Filter Modules Feature Summary

• Two-stage EMI/EMC filtering architecture for enhanced noise suppression
• Chassis mount design with terminal block connections
• Rated for three-phase Delta configurations

Power Line Filter Modules Applications

• Industrial power supply units
• Three-phase motor drives
• Electromagnetic compatibility testing equipment

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision when sourcing, as manufacturing updates may occur. Confirm that the terminal block specifications match your wiring requirements. Ensure the chassis mounting dimensions align with your enclosure design before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this model for applications requiring robust three-phase noise filtration in Delta configurations. Consider the 20 A current rating and 500 V voltage limit to ensure compatibility with your system's electrical parameters. Verify thermal management needs based on the operating environment temperature range.

Power Line Filter Modules Part Context

This component belongs to the FSB series of EMI filters from Cosel USA, Inc., which offers various current ratings and voltage options. The series is characterized by its modular design and suitability for industrial environments requiring reliable electromagnetic interference suppression in power lines.

Power Line Filter Modules Replacement Considerations

Consult official Cosel documentation for direct cross-references. Alternative models within the FSB series may offer different current ratings but require verification of electrical compatibility and physical footprint constraints.
