FTMH-126-03-F-DV-ES

Headers, Male Pins Overview

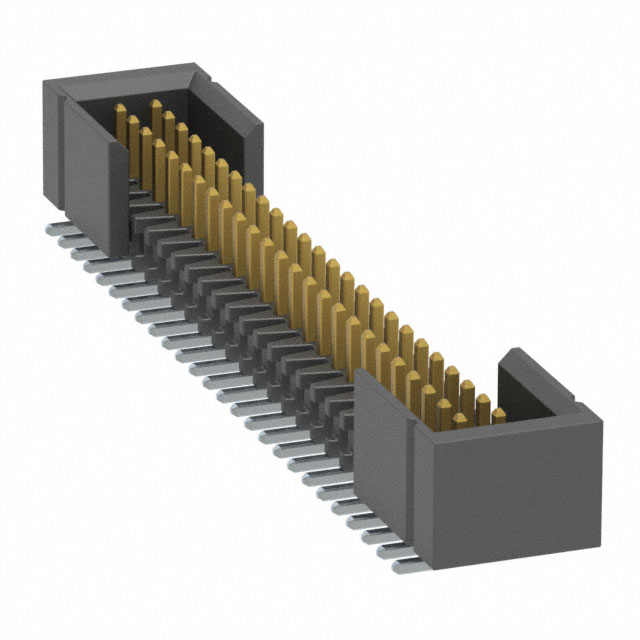

The FTMH-126-03-F-DV-ES is a 1.00 mm pitch surface mount micro terminal strip manufactured by Samtec. It features a dual-row configuration with 52 positions, designed for high-density board-to-board interconnections. The connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. Rated for 270 VAC and 3.1 A, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black liquid crystal polymer (LCP) with a UL 94 V-0 flammability rating. This component supports straight SMD installation and includes locking features for secure mating.

Headers, Male Pins Feature Summary

• Micro low profile design optimized for space-constrained applications
• Integrated end shroud and guide post for precise alignment
• Gold-plated phosphor bronze contacts for enhanced conductivity
• Locking mechanism ensures stable board-to-board connection

Headers, Male Pins Applications

• High-density electronic assemblies requiring compact interconnects
• Board-to-board connections in telecommunications equipment
• Industrial control systems with strict thermal requirements
• Consumer electronics utilizing surface mount technology

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm exact mechanical variations such as lead coplanarity or plating specifications. Ensure compatibility with mating connectors regarding row spacing and post length. Cross-reference regulatory compliance data including RoHS and REACH status with current manufacturer declarations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 1.00 mm pitch surface mount header with integrated locking and shrouding is required. Confirm that the 52-position layout aligns with PCB footprint constraints. Evaluate the 270 VAC and 3.1 A ratings against circuit load requirements. Consider the -55°C to +125°C operating range for environmental suitability in the target application environment.

Headers, Male Pins Part Context

This part belongs to the FTMH series of 1.00 mm Surface Mount Micro Terminal Strips. The series offers flexible positioning options up to 100 I/Os. Variations exist with and without end shrouds, guide posts, and different plating options. The FTMH series is designed for cost-effective high-reliability interconnects in modern electronic manufacturing.
