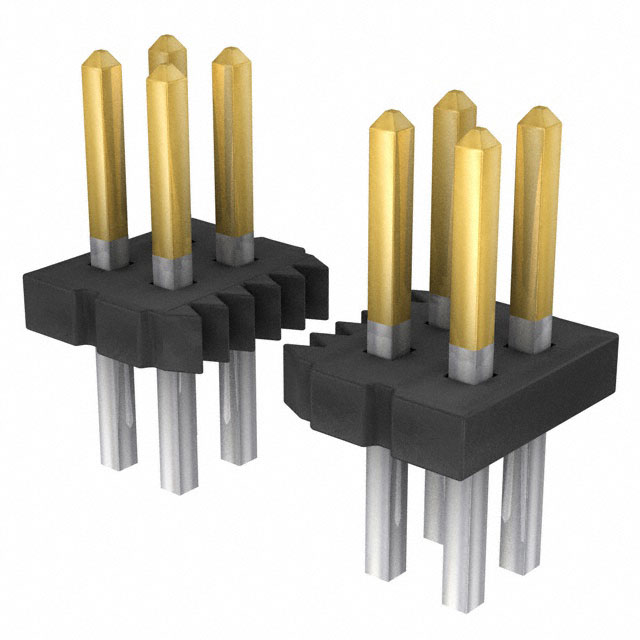

FTS-120-01-FM-D-P

$3.64

Description：CONN HEADER VERT 40POS 1.27MM
Series：FTS
Mfr：Samtec Inc.
Package：Tube

SKU:cda580a0d90f Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FTS-120-01-FM-D-P is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 40POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for FTS-120-01-FM-D-P

Description：CONN HEADER VERT 40POS 1.27MM
Series：FTS
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：40
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.120" (3.05mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：0.244" (6.20mm)
Insulation Height：0.034" (0.86mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Pick and Place
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3.4A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for FTS-120-01-FM-D-P

FTS-120-01-FM-D-P

Headers, Male Pins Overview

The FTS-120-01-FM-D-P is a board connector manufactured by Samtec Inc., featuring 44 contacts arranged in two rows. It utilizes male, straight termination with solder terminals and is RoHS compliant. The component operates within a temperature range of -55°C to 125°C and carries UL94 V-0 flammability rating for its liquid crystal polymer insulation.

Headers, Male Pins Feature Summary

Super-low profile header strip design on a 0.050 inch pitch
Available in surface mount or through hole termination options
End shroud option available for easy installation
Micro low profile header with vertical row configuration

Headers, Male Pins Applications

Board-to-board connections
Backplane interconnects
High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against official datasheets, as part numbers may vary slightly between single and double row versions. Confirm RoHS compliance status and material specifications such as phosphor bronze contacts and gold plating thickness before procurement to ensure compatibility with system requirements.

Headers, Male Pins Selection Notes

Select this component when a super-low profile header is required for high-density applications. Consider the through-hole termination style and end shroud availability for simplified assembly processes. Ensure the operating temperature range and current ratings meet the specific circuit demands.

Headers, Male Pins Part Context

This part belongs to the FTS series of micro low profile header strips from Samtec. The series offers flexible termination options including surface mount and through hole configurations. It is designed for applications requiring compact form factors and reliable electrical connections in space-constrained environments.
