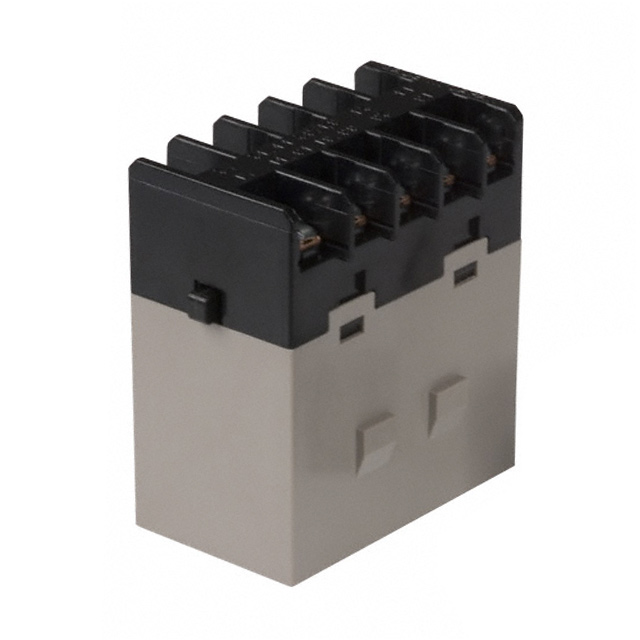

G7J-3A1B-B AC24

G7J-3A1B-B AC24 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE 4PST 25A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G7J-3A1B-B AC24

• Description：RELAY GEN PURPOSE 4PST 25A 24V
• Series：G7J
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：24VAC
• Contact Form：4PST-3NO/1NC (3 Form A, 1 Form B)
• Contact Rating (Current)：25 A
• Switching Voltage：250VAC, 125VDC - Max
• Load - Max Switching：6250VA, 3125W
• Coil Current：75 mA
• Coil Type：Non Latching
• Features：Test Button
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：18 VAC
• Must Release Voltage：3.6 VAC
• Operating Temperature：-25°C ~ 60°C
• Contact Material：-
• Approval Agency：CE, CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：50 ms
• Release Time：50 ms

Power Relays, Over 2 Amps datasheet and documents for G7J-3A1B-B AC24
