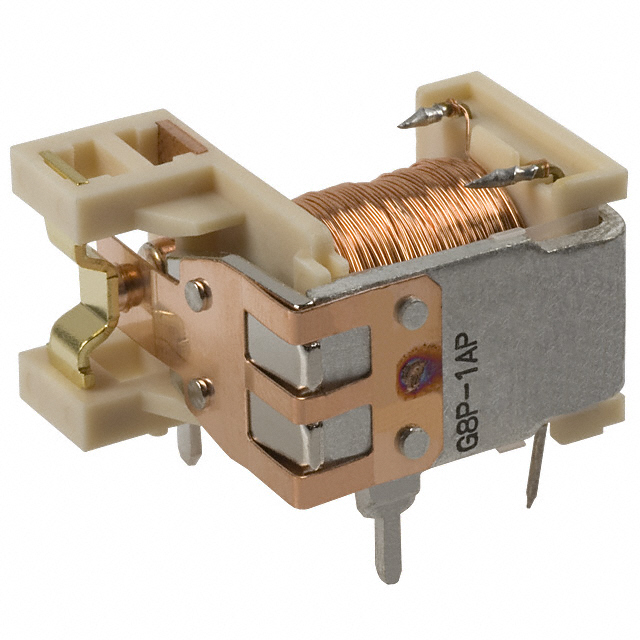

G8P-1AP-FD DC48

G8P-1AP-FD DC48 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 30A 48V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G8P-1AP-FD DC48

• Description：RELAY GEN PURPOSE SPST 30A 48V
• Series：G8P
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：48VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：30 A
• Switching Voltage：250VAC, 28VDC - Max
• Load - Max Switching：7500VA, 840W
• Coil Current：19 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：36 VDC
• Must Release Voltage：4.8 VDC
• Operating Temperature：-55°C ~ 105°C
• Contact Material：Silver Alloy, Cadmium Free
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for G8P-1AP-FD DC48
