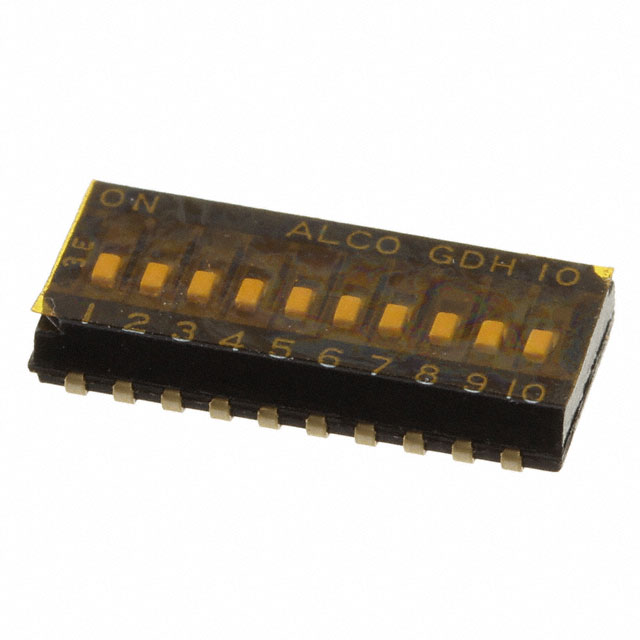

Dip Switches GDH10SA04 product image

GDH10SA04

Description：SWITCH SLIDE DIP SPST 0.025A 24V
Series：GDH
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tube,Tube

SKU:c3ac280af513 Category: DIP Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GDH10SA04 is listed in the Dip Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH SLIDE DIP SPST 0.025A 24V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for GDH10SA04

Description：SWITCH SLIDE DIP SPST 0.025A 24V
Series：GDH
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tube,Tube
Circuit：SPST
Number of Positions：10
Current Rating (Amps)：25mA
Voltage Rating：24VDC
Actuator Type：Slide (Standard)
Actuator Level：Flush, Recessed
Contact Material：Copper Alloy
Contact Finish：Gold
Height Above Board：0.093" (2.35mm)
Mounting Type：Surface Mount
Termination Style：J Lead
Pitch：0.050" (1.27mm), Half
Washable：Yes
Features：Tape Seal
Operating Temperature：-30°C ~ 85°C

Dip Switches datasheet and documents for GDH10SA04

GDH10SA04
