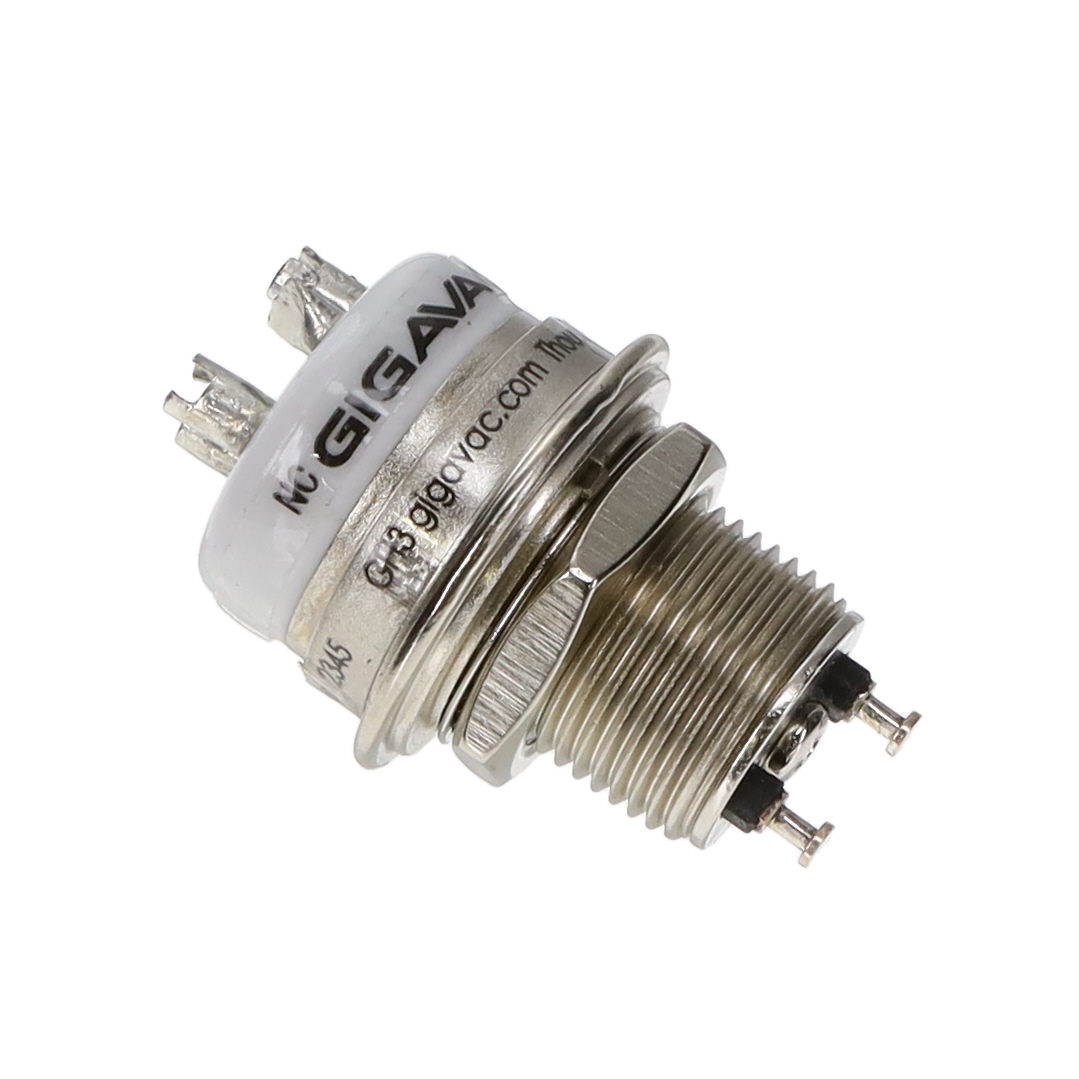

GH3

GH3 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Sensata - Gigavac Industrial. Its product description is 3.5KV SPDT HV RELAY. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for GH3

• Description：3.5KV SPDT HV RELAY
• Series：GH3
• Mfr：Sensata - Gigavac Industrial
• Package：Box
• Mounting Type：Panel Mount
• Coil Voltage：26.5VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：18 A
• Switching Voltage：3500VAC, 3500VDC - Max
• Load - Max Switching：-
• Coil Current：91.1 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Solder Turret
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：16 VDC
• Must Release Voltage：1 VDC
• Operating Temperature：-55°C ~ 125°C
• Contact Material：Tungsten (W)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：6 ms
• Release Time：6 ms

Power Relays, Over 2 Amps datasheet and documents for GH3
