GSM3Z4V7CW

$0.12

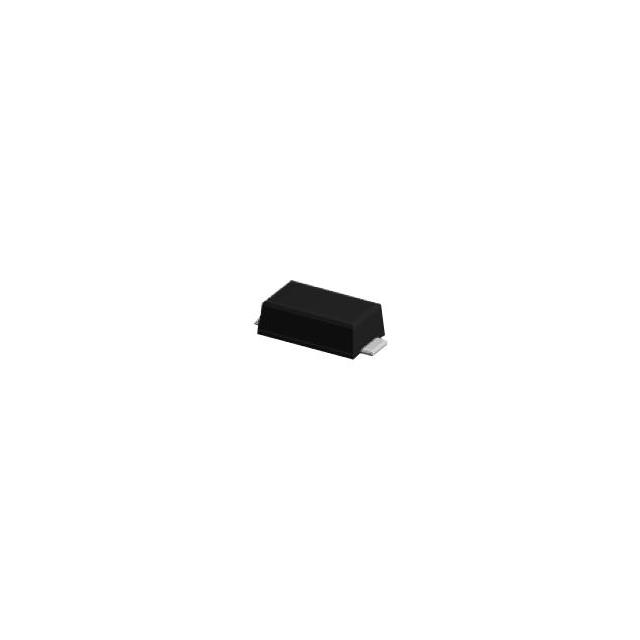

Description：DIODE ZENER 4.7V 200MW SOD323F
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:23e541976fe9 Category: Single Zener Diodes Brand: Good-Ark Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GSM3Z4V7CW is listed in the Single Zener Diodes range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is DIODE ZENER 4.7V 200MW SOD323F. Review the specifications below when checking this part for your BOM.

Single Zener Diodes specifications for GSM3Z4V7CW

Description：DIODE ZENER 4.7V 200MW SOD323F
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Voltage - Zener (Nom) (Vz)：4.7 V
Tolerance：±5%
Power - Max：200 mW
Impedance (Max) (Zzt)：80 Ohms
Current - Reverse Leakage @ Vr：2.7 µA @ 2 V
Operating Temperature：-65°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SC-90, SOD-323F
Voltage - Forward (Vf) (Max) @ If：1 V @ 10 mA
Grade：-
Qualification：-

Single Zener Diodes datasheet and documents for GSM3Z4V7CW

GSM3Z4V7CW

Single Zener Diodes Overview

The GSM3Z4V7CW is a surface mount Zener diode from Good-Ark Semiconductor, featuring a nominal voltage of 4.7 V with ±5% tolerance. It operates within a range of 2.0 to 75 V and dissipates up to 200 mW. The device utilizes an SOD-323F package, supporting junction temperatures from -65°C to +150°C. Key electrical parameters include a maximum forward voltage of 1.0 V at 10 mA, a test current of 80 mA, and a dynamic impedance of 4.47 Ω.

Single Zener Diodes Feature Summary

Provides stable voltage regulation with high reliability in a compact footprint
Features a flat low-profile SOD-323F package suitable for dense circuit designs
Includes a color band to clearly denote the cathode end for correct mounting

Single Zener Diodes Applications

General voltage reference circuits
Over-voltage protection stages
Clipping and waveform shaping applications

Single Zener Diodes Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with design requirements. Confirm that the SOD-323F package dimensions align with PCB layout constraints. Check for RoHS compliance status if required by project specifications. Ensure storage and handling procedures adhere to moisture sensitivity levels defined in the datasheet to maintain component integrity during assembly.

Single Zener Diodes Selection Notes

Select this component when a precise 4.7 V reference is needed in space-constrained environments. The SOD-323F package offers a small footprint ideal for modern surface mount technology. Consider the 200 mW power dissipation limit and thermal management needs. Verify that the ±5% tolerance meets the accuracy requirements of the target application circuit.

Single Zener Diodes Part Context

This component belongs to the GSM3ZxxCW series of surface mount Zener diodes manufactured by Good-Ark Semiconductor. The series covers a wide voltage range from 2.0 V to 75 V, all housed in the standardized SOD-323F package. This family is designed for general-purpose regulation and protection tasks, offering consistent performance across various industrial and consumer electronics applications.
