HB5G007HLT

Pulse Transformers Overview

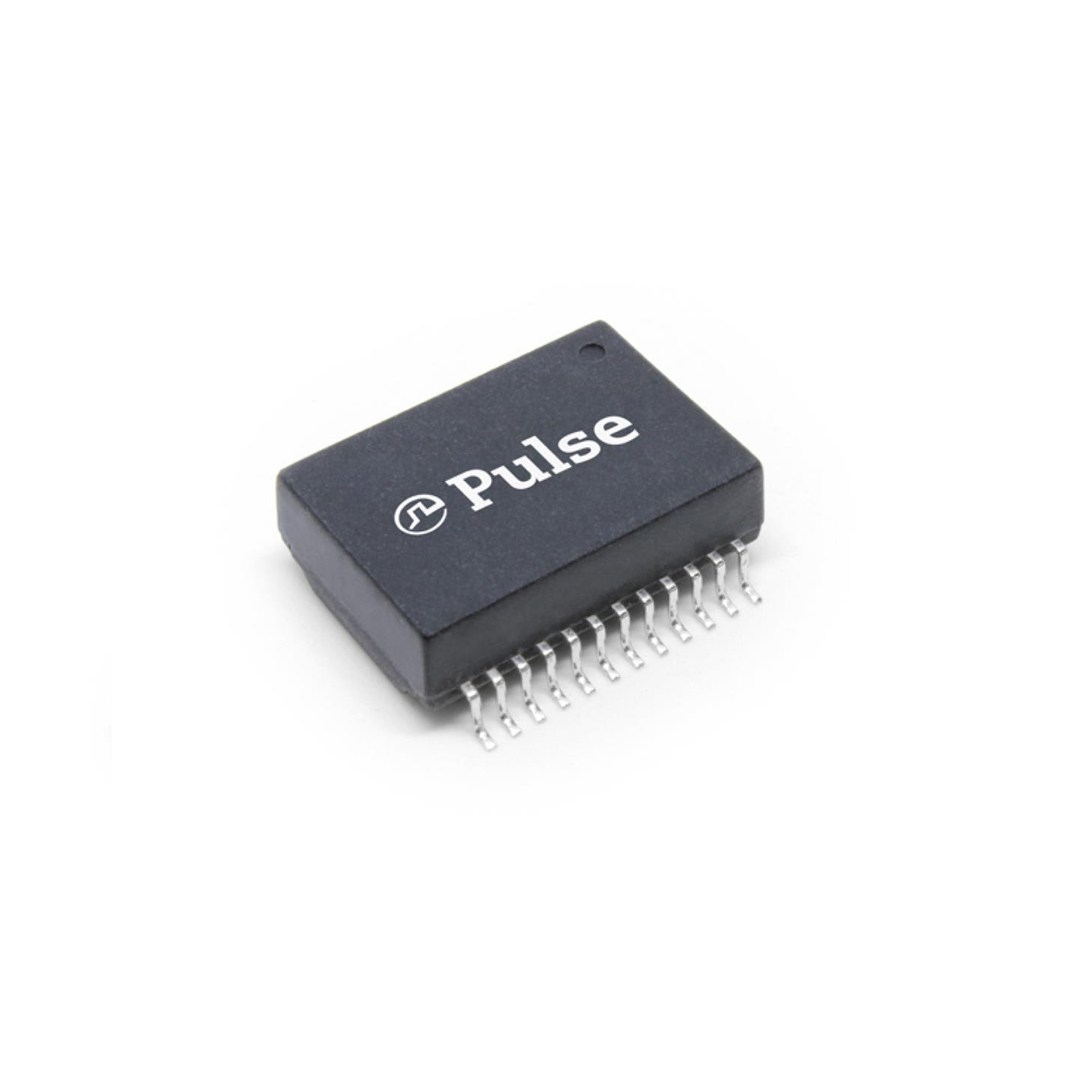

The HB5G007HLT is a LAN discrete module manufactured by Pulse Electronics, designed for surface-mount applications. It functions as a high-frequency pulse transformer with a single channel configuration and a 1:1 turns ratio. The component provides 5GD isolation and features an insulation voltage rating of 4 kVrms. It operates within a temperature range of 0°C to +70°C. The physical dimensions are 27.8 mm in length, 15.2 mm in width, and 7.2 mm in height. The unit weight is 5.770 g. Packaging options include Reel, Cut Tape, and MouseReel formats.

Pulse Transformers Feature Summary

• Provides galvanic isolation for high-frequency signal transmission in LAN applications
• Features encapsulated construction for environmental protection and mechanical stability
• Supports surface-mount technology for automated assembly processes

Pulse Transformers Applications

• LAN Base-T network interface circuits
• High-frequency data signal isolation
• Ethernet port protection modules

Pulse Transformers Procurement Notes

Verify the specific ordering suffix and packaging format required for your production line, as availability may vary between Reel, Cut Tape, and MouseReel options. Confirm that the manufacturer's standard lead time aligns with your project schedule before placing orders. Ensure compliance with RoHS regulations and check for any specific moisture sensitivity level requirements during storage and handling procedures.

Pulse Transformers Selection Notes

Select this component when a single-channel, 1:1 ratio LAN transformer is required for surface-mount designs. The 4 kVrms isolation voltage meets standard safety requirements for network interfaces. Consider the operating temperature range and physical footprint constraints to ensure compatibility with the target PCB layout and thermal management strategy.

Pulse Transformers Part Context

This part belongs to the HB series of LAN discrete modules from Pulse Electronics. These components are specialized transformers intended for network interface applications. The series offers various configurations including dual and single channel options with different isolation levels. The HB5G007HLT specifically addresses single-channel high-frequency isolation needs.

Pulse Transformers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
