HD8006FNL

Pulse Transformers Overview

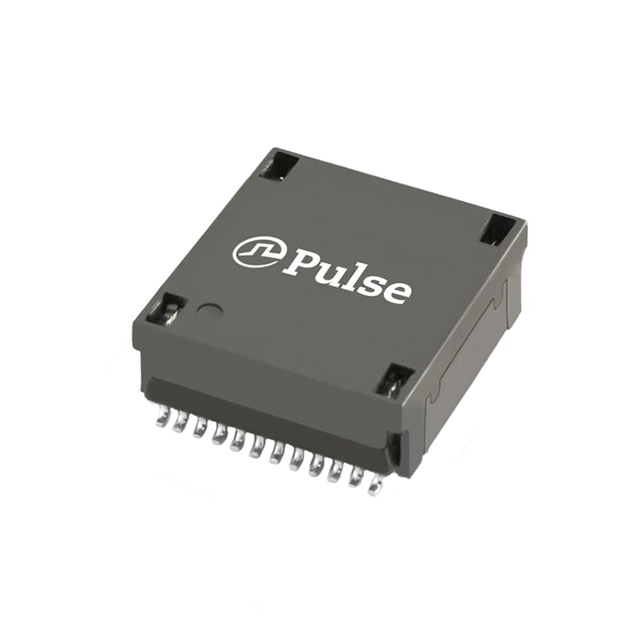

The HD8006FNL is a single-port HDBase-T transformer module manufactured by Pulse Electronics. Designed for surface-mount technology (SMD/SMT) applications, this component supports PoE+ and HDBaseT Power over Ethernet (PoH) standards with a power rating of 140W. It operates within a temperature range of 0°C to +70°C and features an SMT-24 package. The module integrates four pairs of twisted wires to facilitate data transmission while managing power delivery in open-frame configurations.

Pulse Transformers Feature Summary

• Integrates four pairs of twisted wires for reliable data transfer in single-port HDBase-T applications
• Supports HDBaseT Power over Ethernet (PoH) and PoE+ standards for combined power and data transmission
• Designed to reduce common-mode noise, thereby enhancing electromagnetic interference (EMI) performance

Pulse Transformers Applications

• HDBaseT-based audio and video distribution systems
• Single-port network infrastructure requiring integrated power and data
• Open-frame electronic devices utilizing HDBaseT connectivity

Pulse Transformers Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly from Pulse Electronics before procurement. Confirm that the SMT-24 package dimensions align with your PCB footprint requirements. Ensure that the 140W power handling capability meets the thermal design specifications of your target application environment.

Pulse Transformers Selection Notes

Select the HD8006FNL when designing single-port HDBase-T solutions that require high-power delivery alongside data transmission. This module is suitable for applications demanding reduced EMI through integrated noise management. Consider the SMT-24 form factor for compact board layouts where surface-mount assembly is preferred over through-hole options.

Pulse Transformers Part Context

This component belongs to the HD series of HDBaseT transformers and connectors produced by Pulse Electronics. The series focuses on providing integrated solutions for transmitting audio, video, power, and control signals over standard Ethernet cabling. These modules are engineered to meet the stringent performance requirements of modern digital display and AV distribution networks.

Pulse Transformers Replacement Considerations

Consult official Pulse Electronics documentation for verified substitute part numbers. Cross-reference electrical parameters and pinout configurations carefully when evaluating alternatives to ensure functional compatibility in HDBase-T designs.
