HHBC10-0R8A0107V

Common Mode Chokes Overview

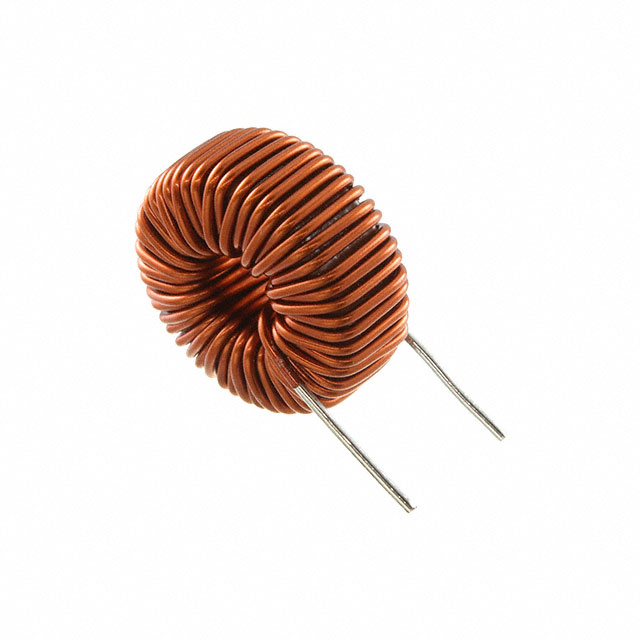

The KEMET HHBC10-0R8A0107V is a toroidal power inductor from the HHBC series, designed for AC line filter applications. It features an inductance of 107 µH with a tolerance of ±20%. The component supports a maximum DC current of 3 A and exhibits a maximum DC resistance of 53 mΩ. It operates within a temperature range of -40 °C to +125 °C and is tested at 100 kHz. The device utilizes through-hole installation with solder pad terminations and measures 22 mm in length, 12.1 mm in height, and 9 mm in lead spacing.

Common Mode Chokes Feature Summary

• Toroidal core construction for efficient magnetic flux containment
• Through-hole mounting configuration with solder pad terminations
• Designed specifically for normal mode AC line filtering

Common Mode Chokes Applications

• AC line filters
• Normal mode noise suppression

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with existing PCB layouts regarding lead spacing and hole diameter. Confirm that the operating temperature range meets system requirements. Check for RoHS compliance status as indicated in the manufacturer's datasheet. Validate that the current rating aligns with circuit design specifications.

Common Mode Chokes Selection Notes

Select this component when a toroidal inductor is required for AC line filtering applications. Consider the 107 µH inductance value and 3 A current rating for suitability. Evaluate the through-hole package type against available board space and assembly methods. Assess the thermal performance within the specified -40 °C to +125 °C range. Compare the DC resistance and size constraints with alternative designs.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of toroidal inductors. These components are engineered for general-purpose power and filtering applications. The series offers various inductance values and current ratings to suit different circuit requirements. The HHBC series is characterized by its robust construction and reliable performance in standard electronic environments.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides or distributor cross-reference tools for verified equivalent parts. Ensure any substitute matches the 107 µH inductance, 3 A current rating, and 53 mΩ DC resistance. Verify that the replacement maintains the same toroidal form factor and through-hole termination style. Confirm that the new component meets the same temperature and safety standards.
