HHBC12-1R0A0028V

$2.35

Description：CMC 28UH 5A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk

SKU:6aa7e26e848e Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

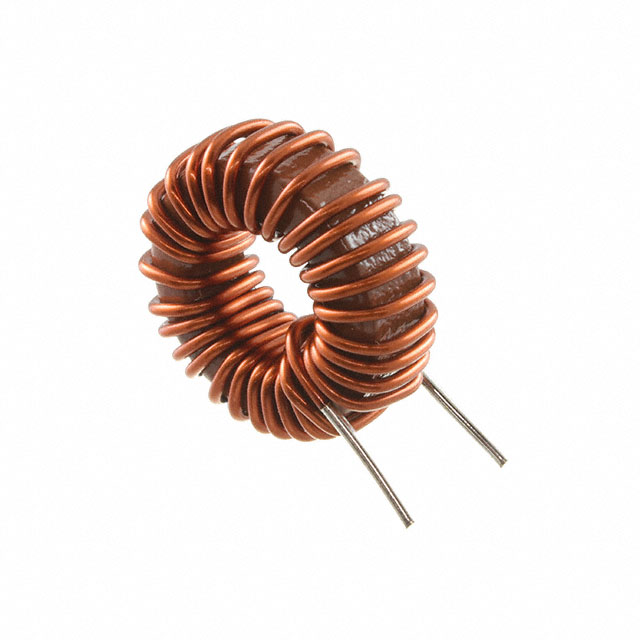

HHBC12-1R0A0028V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 28UH 5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HHBC12-1R0A0028V

Description：CMC 28UH 5A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：21.1mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.024" Dia (26.00mm)
Height (Max)：1.024" (26.00mm)
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：28 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HHBC12-1R0A0028V

HHBC12-1R0A0028V

Common Mode Chokes Overview

The KEMET HHBC12-1R0A0028V is a through-hole differential mode choke from the HHBC series. It features an inductance of 28 µH with a 20% tolerance and a maximum DC current rating of 5 A. The component utilizes Fe-Si dust core material, offering a balance of core loss and DC superposition characteristics. It has a maximum DC resistance of 21.1 mΩ and operates within a temperature range of -40 °C to +125 °C. The device employs standard PCB mount termination.

Common Mode Chokes Feature Summary

Utilizes Fe-Si dust core material for balanced core loss and DC superposition performance
Designed as a differential mode choke for power applications
Supports through-hole mounting via standard PCB termination

Common Mode Chokes Applications

Power supply filtering
Differential mode noise suppression
General electronic equipment EMC mitigation

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with target circuit requirements regarding current handling and inductance values. Check for RoHS compliance status if required by local regulations or end-product specifications.

Common Mode Chokes Selection Notes

Select this component when a through-hole differential mode choke is required for power line filtering. Consider the 5 A current rating and 28 µH inductance for appropriate noise attenuation. Verify that the operating temperature range meets environmental conditions and that PCB layout accommodates the physical footprint.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of toroidal inductors. The series offers various sizes and specifications, utilizing Fe-Si dust cores to provide reliable performance in power electronics applications. These components are designed for general-purpose use where differential mode noise reduction is necessary.
