HHBC8S-0R6A0067V

Common Mode Chokes Overview

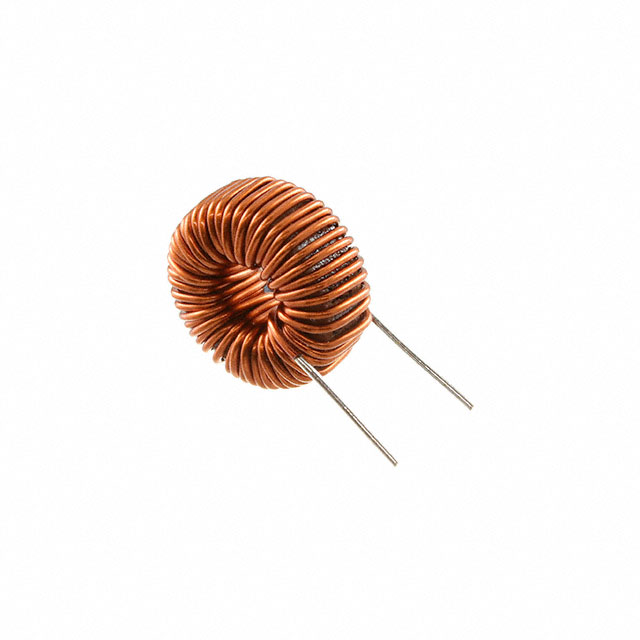

The KEMET HHBC8S-0R6A0067V is a through-hole common mode inductor from the HHBC series. It features an inductance of 67 μH with a tolerance of ±20%. The component supports a maximum DC current of 2 A and has a maximum DC resistance of 67.8 mΩ. It operates within a temperature range of -40 °C to 125 °C and is tested at 100 kHz. The device utilizes ferrite core material and is packaged in trays.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for differential signal lines
• Utilizes unshielded toroidal ferrite core construction
• Designed for radial lead termination on printed circuit boards

Common Mode Chokes Applications

• Commercial electronic equipment EMI filtering
• Differential data line noise suppression
• General purpose power supply input filtering

Common Mode Chokes Procurement Notes

Verify the specific suffix code against official KEMET documentation to confirm exact electrical tolerances and thermal ratings. Ensure the procurement specification matches the required 67 μH inductance value and 2 A current rating. Confirm that the through-hole mounting style aligns with the target PCB layout requirements before finalizing orders.

Common Mode Chokes Selection Notes

Select this component when a 67 μH common mode choke is required for commercial applications operating up to 125 °C. The low DC resistance minimizes voltage drop in high-current paths. Verify that the 2 A saturation current meets the peak load demands of the circuit design without causing significant inductance degradation.

Common Mode Chokes Part Context

This part belongs to the KEMET HHBC series of wire-wound common mode inductors. These components are engineered for general-purpose electromagnetic interference suppression in commercial electronics. The series offers various inductance values tailored for different frequency attenuation needs while maintaining compact radial leaded form factors.

Common Mode Chokes Replacement Considerations

Check KEMET datasheets for other HHBC series variants with matching 67 μH inductance and 2 A current ratings. Verify pin compatibility and physical dimensions for direct board replacement.
