HLMP-LL65-XYKDD

LED Indication - Discrete Overview

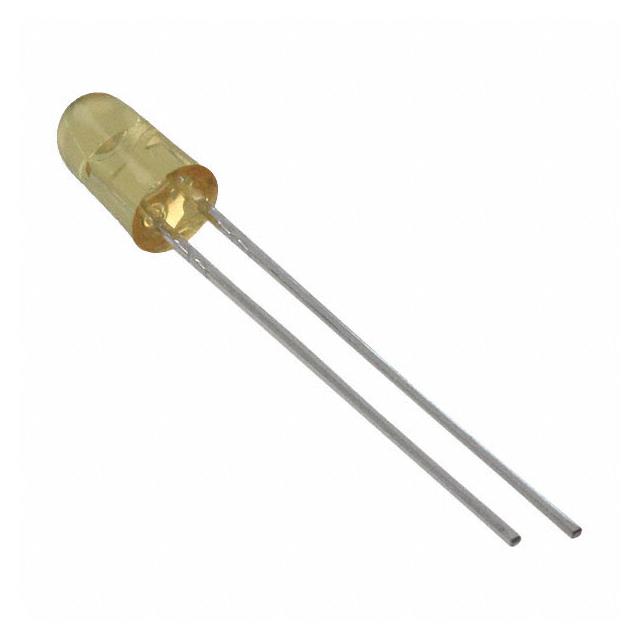

The HLMP-LL65-XYKDD is a 4mm standard oval through-hole LED emitting amber light at a peak wavelength of 590nm. It features a diffused lens for wide viewing angles and high on-off contrast. The component delivers a typical luminous intensity of 1660mcd in parallel configuration, with a maximum rating of 2400mcd. Designed for indicator applications, it utilizes a tinted dome lens to enhance visibility in passenger information signs and full-color video displays.

LED Indication - Discrete Feature Summary

• Oval shaped radiation pattern optimized for visibility in signage
• Diffused lens provides wide viewing angle and high contrast
• Amber emission color suitable for indication and signaling

LED Indication - Discrete Applications

• Passenger information signs
• Full color video displays
• Indicator lamps
• Signaling applications

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct lens transparency and binning. Confirm that the package type matches the required mounting method, as variations exist within the series. Cross-reference the part number with the latest datasheet to validate electrical characteristics and mechanical dimensions before integration into design specifications.

LED Indication - Discrete Selection Notes

Select this component when an oval form factor is required for specific optical coverage in display applications. Consider the amber wavelength and diffused lens properties for visibility requirements. Ensure the through-hole mounting style aligns with the PCB layout constraints. Evaluate the luminous intensity range against the ambient lighting conditions of the intended installation environment.

LED Indication - Discrete Part Context

This part belongs to the Broadcom HLMP-LL65 series of precision optical performance oval LEDs. The series is engineered for applications requiring specific radiation patterns and high contrast ratios. These components are distinct from standard round LEDs by their unique oval geometry, which facilitates better alignment with certain display architectures and signage designs.

LED Indication - Discrete Replacement Considerations

Consult official substitution guides for compatible alternatives within the HLMP-LL65 family or equivalent oval LED series. Verify pinout compatibility and forward voltage parameters when considering cross-brand replacements. Ensure any substitute maintains the required 4mm package dimensions and through-hole mounting specifications.
