HLMP-WG02

LED Indication - Discrete Overview

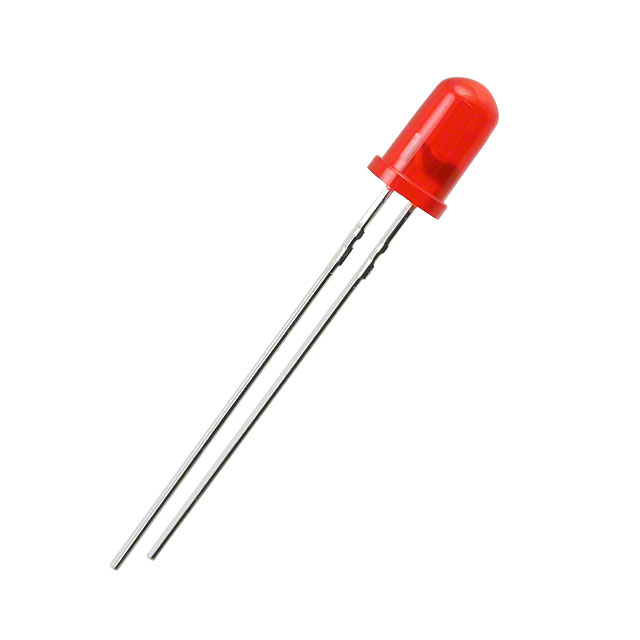

The HLMP-WG02 is a single-color red LED lamp manufactured by Broadcom Limited. It utilizes a T-1 3/4 (5 mm) through-hole package with a round, diffused lens. Key electrical parameters include a forward voltage of 1.9 V at a forward current of 20 mA. The device emits light at a wavelength of 635 nm with an optical intensity of 26 mcd. It is designed for standard lead times and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Features a tinted red lens with a diffused finish for broad visibility.
• Constructed in a T-1 3/4 (5 mm) radial through-hole package.
• Provides higher brightness output compared to standard lamps.

LED Indication - Discrete Applications

• General purpose indicator lighting
• Equipment status indication
• Control panel signaling

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number HLMP-WG02 against official Broadcom Limited documentation to ensure authenticity. Confirm that the component meets specific project requirements for wavelength, forward voltage, and package dimensions before finalizing procurement decisions.

LED Indication - Discrete Selection Notes

Select this component when a high-brightness red indicator is required in a T-1 3/4 form factor. Ensure the application circuit supports a 20 mA forward current and accounts for the 1.9 V forward voltage drop. Verify that the diffused lens characteristics align with the desired visual range and intensity needs.

LED Indication - Discrete Part Context

This component belongs to the HLMP-WG series of single-color LEDs from Broadcom Limited. It is categorized under discrete LED indications and is distinct from other series such as HLMP-Q or HLMP-NL based on its specific package style and optical performance characteristics.

LED Indication - Discrete Replacement Considerations

Consult official Broadcom Limited substitution guides for verified alternative part numbers. Generic cross-references may not match the specific 635 nm wavelength or 26 mcd intensity requirements.
