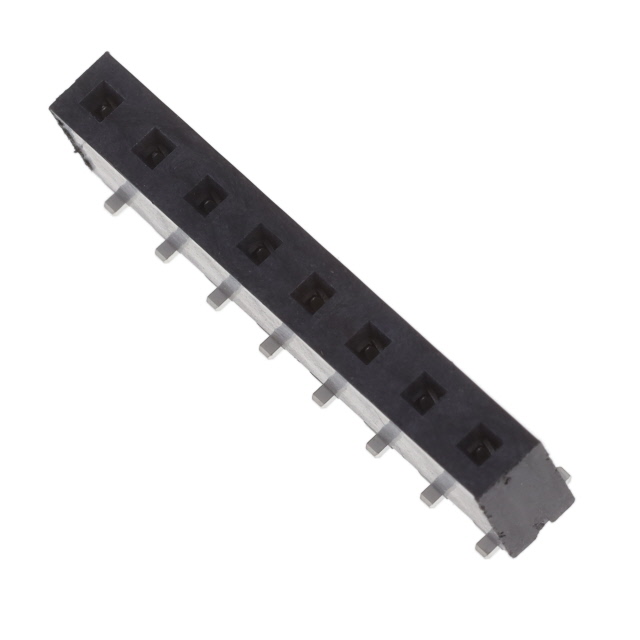

HPF-08-02-T-S-LC-K

HPF-08-02-T-S-LC-K is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is .200 HI POWER SOCKET ASSEMBLY. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for HPF-08-02-T-S-LC-K

• Description：.200 HI POWER SOCKET ASSEMBLY
• Series：HPF
• Mfr：Samtec Inc.
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：8
• Number of Positions Loaded：All
• Pitch - Mating：0.200" (5.08mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.351" (8.92mm)
• Contact Length - Post：-
• Operating Temperature：-
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Lock, Pick and Place
• Current Rating (Amps)：-
• Voltage Rating：-
