HSMF-A211-A00J1

LED Indication - Discrete Overview

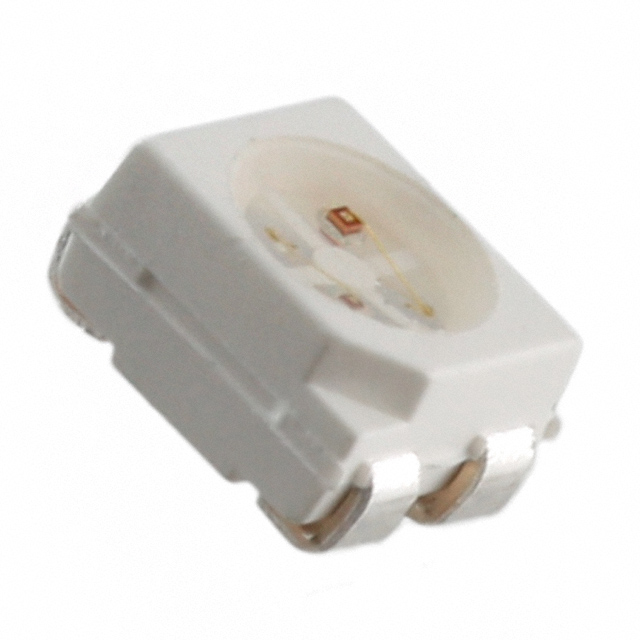

The HSMF-A211-A00J1 is a dual-color surface-mount LED from Broadcom Limited, housed in a 4-PLCC package. It features independent green and red emitters with a clear, colorless lens. The green element operates at a typical forward voltage of 2.2V with a peak wavelength of 565nm, while the red element has a typical forward voltage of 1.9V and a peak wavelength of 645nm. Both LEDs are tested at 20mA. The device offers a 120-degree viewing angle and measures 3.20mm x 2.80mm x 2.10mm. It is RoHS3 compliant and classified as MSL Level 2A.

LED Indication - Discrete Feature Summary

• Dual-color configuration with independent green and red light-emitting diodes within a single compact package.
• Clear, colorless lens design providing high transparency for optimal light transmission.
• Surface-mount technology construction suitable for automated assembly processes.
• Wide viewing angle capability ensuring visibility from multiple perspectives.

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Visual signaling in consumer electronics devices
• Indicator lights for industrial control panels

LED Indication - Discrete Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official Broadcom documentation. Confirm that the received items match the specified 4-PLCC package dimensions and lead configuration. Ensure compliance with RoHS3 standards and check moisture sensitivity level handling requirements during storage and reflow soldering to maintain device integrity.

LED Indication - Discrete Selection Notes

Select this component when a compact dual-color indicator is required for space-constrained designs. The independent control of green and red channels allows for distinct status signaling without increasing board footprint. Consider the specific forward voltage differences between the green and red elements when designing drive circuits to ensure proper current limiting and brightness balance.

LED Indication - Discrete Part Context

This part belongs to the HSMF-A211 series of bi-color LEDs manufactured by Broadcom Limited. The series utilizes standard PLCC-4 packaging common in surface-mount applications. It serves as a specialized variant within the broader portfolio of discrete optoelectronic components designed for visual feedback in various electronic systems.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers: None identified in source data.
