ICE40LP1K-CM121TR

Field Programmable Gate Array Overview

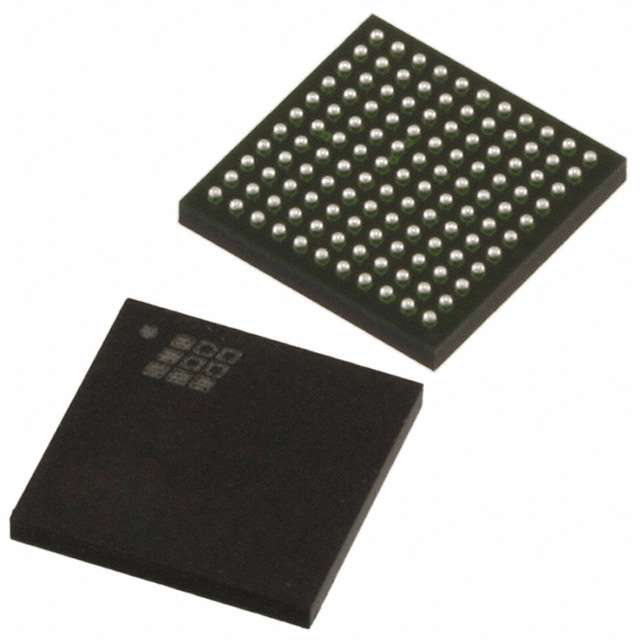

The ICE40LP1K-CM121TR is a Field Programmable Gate Array (FPGA) belonging to the iCE40 LP family, manufactured by Lattice Semiconductor. It features 1280 logic cells and 64 Kbit of embedded RAM. The device utilizes a 121-pin csBGA package with dimensions of 6 x 6 x 0.9 mm. It operates within a supply voltage range of 1.14 V to 1.26 V and supports an operating temperature range from -40 °C to +85 °C.

Field Programmable Gate Array Feature Summary

• Non-volatile configuration memory enables instant-on functionality without external storage.
• Ultra-low power architecture designed for battery-operated and portable applications.
• Compact physical footprint suitable for space-constrained mobile devices.

Field Programmable Gate Array Applications

• Instant-on system control in mobile handheld devices
• Flexible I/O expansion for cost-sensitive consumer electronics
• Glue logic implementation in compact digital circuits

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'CM121' against official Lattice documentation to confirm pinout compatibility and package type. Ensure the ordering code matches the required tape-and-reel quantity specifications. Cross-reference the manufacturer part number with authorized distributor listings to validate authenticity and traceability before procurement.

Field Programmable Gate Array Selection Notes

Select this component when non-volatile configuration and low static current are prioritized over high-performance clocking. Compare logic cell counts and embedded memory requirements against other iCE40 LP variants like the LP384 or LP4K. Confirm that the 121-pin BGA package fits the target PCB layout constraints and thermal management requirements.

Field Programmable Gate Array Part Context

This part belongs to the iCE40 LP series, which focuses on ultra-low density and low power consumption. It complements the HX series by offering lower costs and reduced power usage at the expense of some performance metrics. The LP series is optimized for applications where size and battery life are critical design factors.

Field Programmable Gate Array Replacement Considerations

Direct pin-compatible replacements within the same package may include other iCE40 LP variants such as the ICE40LP4K-CM121TR, provided higher resource utilization is acceptable. Verify electrical characteristics and timing parameters before substituting with different families.
