IHLP1212ABEVR47MA1

$0.66

Description：IHLP-1212AB-A1 .47 20% EV E3
Series：IHLP-1212AB-A1
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c328b3224815 Category: Fixed Inductors Brand: Vishay Dale

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IHLP1212ABEVR47MA1 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is IHLP-1212AB-A1 .47 20% EV E3. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for IHLP1212ABEVR47MA1

Description：IHLP-1212AB-A1 .47 20% EV E3
Series：IHLP-1212AB-A1
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Material - Core：Metal Composite
Inductance：470 nH
Tolerance：±20%
Current Rating (Amps)：5.86 A
Current - Saturation (Isat)：8.17A
Shielding：Shielded
DC Resistance (DCR)：27.39mOhm Max
Q @ Freq：-
Frequency - Self Resonant：157MHz
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.140" L x 0.130" W (3.56mm x 3.30mm)
Height - Seated (Max)：0.047" (1.20mm)
Features：-

Fixed Inductors datasheet and documents for IHLP1212ABEVR47MA1

IHLP1212ABEVR47MA1

Fixed Inductors Overview

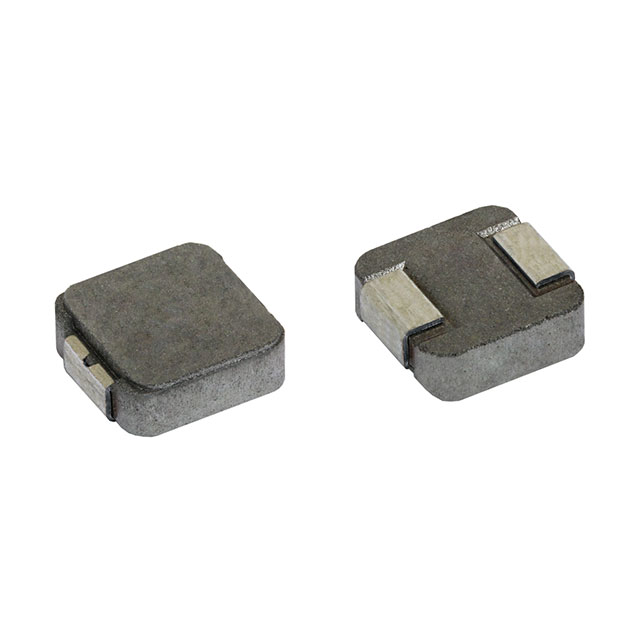

The IHLP1212ABEVR47MA1 is a shielded surface-mount power inductor from Vishay Dale, featuring a composite core and molded construction. It offers an inductance of 470 nH with a tolerance of ±20%. The component supports a maximum DC current of 5.86 A and a saturation current of 8.17 A, with a maximum DC resistance of 27.39 mOhms. Operating within a temperature range of -55°C to +125°C, it achieves a self-resonant frequency of 157 MHz at a test frequency of 100 kHz. The package dimensions are 3 mm x 3 mm x 1.2 mm.

Fixed Inductors Feature Summary

AEC-Q200 qualified for automotive reliability standards
Shielded design minimizes electromagnetic interference
Composite core structure reduces buzz noise during operation

Fixed Inductors Applications

Automotive electronics systems
Battery-powered devices
Commercial power supply circuits

Fixed Inductors Procurement Notes

Verify the specific suffix 'A1' confirms AEC-Q200 qualification and composite core composition. Ensure the ordering part number matches the required 470 nH value and 27.39 mOhm DCR specifications. Confirm that the 1212 footprint aligns with the PCB layout requirements before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when high saturation current capability is required in a compact SMD form factor. The AEC-Q200 rating makes it suitable for automotive environments where thermal stability and transient current handling are critical. Compare the 8.17 A saturation limit against peak load currents to ensure adequate headroom.

Fixed Inductors Part Context

This part belongs to the IHLP-1212AB-A1 series of high-saturation inductors. The series utilizes a composite core material to achieve low magnetic buzz noise and high current handling capabilities within a small 3x3 mm footprint. It is designed for applications requiring robust performance under varying load conditions.

Fixed Inductors Replacement Considerations

Cross-reference other parts in the IHLP1212AB family with matching inductance and saturation current ratings. Verify that any substitute maintains the same 1212 package dimensions and AEC-Q200 qualification if automotive use is intended.
