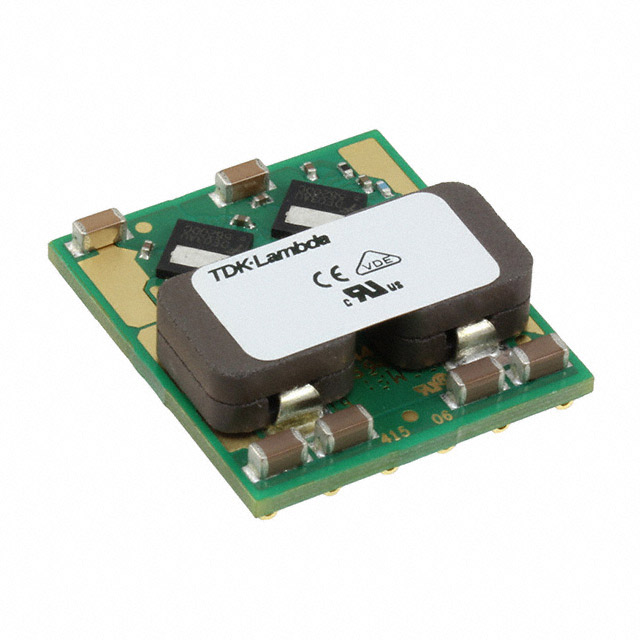

IJB12060A006V-001-R

IJB12060A006V-001-R is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 0.6-2V 120W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IJB12060A006V-001-R

• Description：DC DC CONVERTER 0.6-2V 120W
• Series：iJB (120W)
• Mfr：TDK-Lambda
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.6 ~ 2V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：60A
• Power (Watts)：120 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 120°C
• Efficiency：93%
• Mounting Type：Surface Mount
• Package / Case：28-SMD Module
• Size / Dimension：1.06" L x 0.95" W x 0.38" H (26.8mm x 24.1mm x 9.5mm)
• Supplier Device Package：28-SMD Module
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for IJB12060A006V-001-R
