IPD030N03LF2SATMA1

Single FETs, MOSFETs Overview

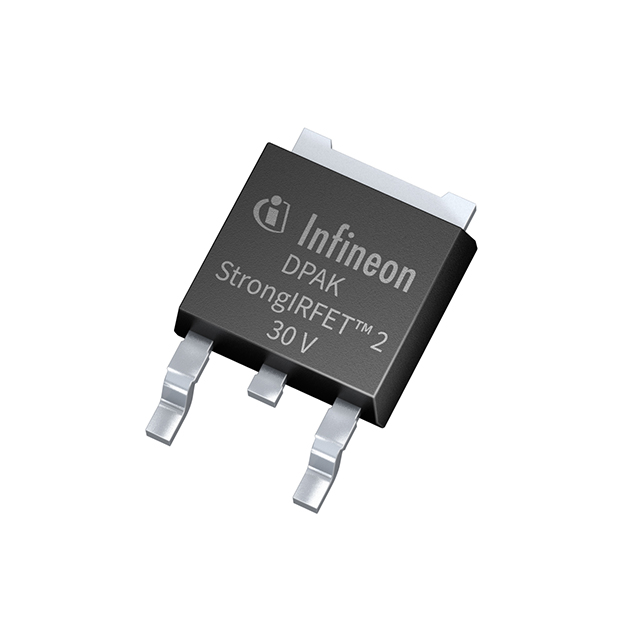

The IPD030N03LF2SATMA1 is a single N-channel Power MOSFET from Infineon’s StrongIRFET 2 series, utilizing silicon technology. It features a 30 V drain-source voltage rating and a continuous drain current of 99 A in surface-mount TO-252-3 (DPAK) packaging. The device exhibits a maximum on-resistance of 3.05 mΩ at 10 V gate drive. Key electrical characteristics include a gate charge of 7.8 nC and a threshold voltage range of 1 V to 4.5 V. It supports operation between -55°C and +175°C with a power dissipation capacity of 107 W.

Single FETs, MOSFETs Feature Summary

• StrongIRFET 2 technology optimized for low switching losses
• Enhanced thermal performance via DPAK package design
• High forward transconductance for improved switching efficiency

Single FETs, MOSFETs Applications

• Low to high-frequency power conversion circuits
• DC-DC converter synchronous rectification
• Motor control applications requiring fast switching

Single FETs, MOSFETs Procurement Notes

Verify the complete ordering code including suffixes against official Infineon documentation to ensure correct variant selection. Confirm RoHS compliance status and specific tape-and-reel specifications required for automated assembly processes prior to finalizing procurement orders.

Single FETs, MOSFETs Selection Notes

Select this component for designs prioritizing low conduction losses combined with efficient switching speeds. Ensure the gate driver can supply sufficient current to manage the 7.8 nC gate charge effectively. Validate that the PCB layout supports the thermal requirements associated with the specified power dissipation limits.

Single FETs, MOSFETs Part Context

This part belongs to the StrongIRFET 2 family, representing an evolution in silicon MOSFET technology designed to balance conduction and switching losses. It serves as a specialized solution within Infineon's broad portfolio of power semiconductors for compact, high-efficiency power management systems.

Single FETs, MOSFETs Replacement Considerations

Check for direct cross-reference availability through official Infineon substitution guides. Verify pin compatibility and thermal resistance parameters when considering alternative packages or older generation parts.
