IV2Q06040L1

Single FETs, MOSFETs Overview

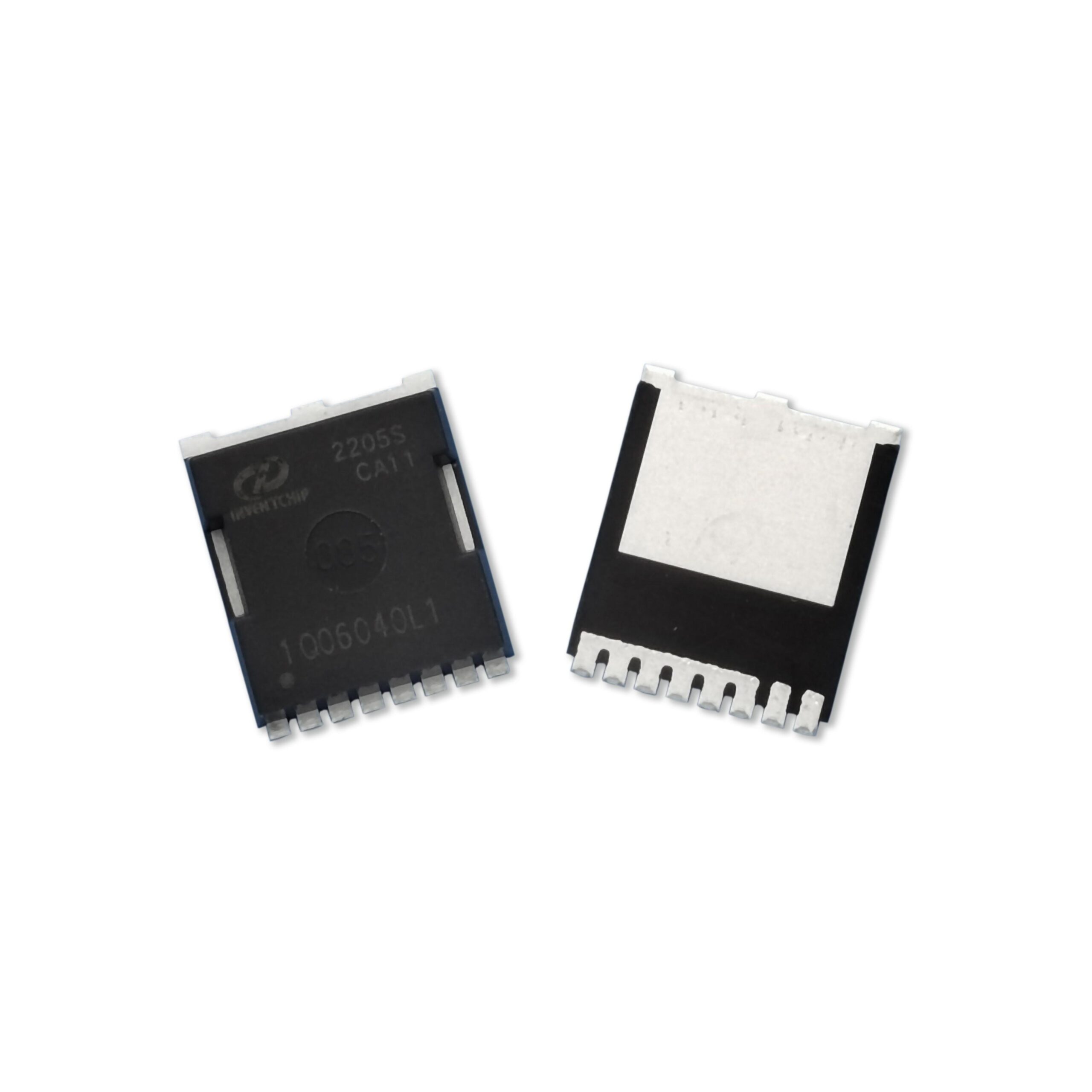

The IV2Q06040L1 is a second-generation planar-gate Silicon Carbide (SiC) MOSFET manufactured by Inventchip. It features a 650V drain-source voltage rating and a typical on-resistance of 40mΩ. The device supports a continuous drain current of 63.5A at case temperature and handles 249W of power dissipation. Key electrical parameters include a gate-source charge of 24.5nC, gate-drain charge of 47.3nC, and gate input resistance of 2.9Ω at 1MHz. It is housed in a TOLL-8L through-hole package.

Single FETs, MOSFETs Feature Summary

• Utilizes second-generation planar-gate technology for enhanced performance
• High thermal efficiency with 249W power dissipation capability
• Low on-resistance design for reduced conduction losses

Single FETs, MOSFETs Applications

• High-frequency power conversion systems
• Industrial motor drives
• Uninterruptible power supplies (UPS)

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet version from Inventchip to confirm exact electrical characteristics and thermal limits. Ensure the TOLL-8L package footprint matches the target PCB layout. Confirm RoHS compliance status if required for specific regulatory environments. Cross-reference pinout diagrams with assembly documentation to prevent installation errors.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring high voltage tolerance and low switching losses. The 650V rating suits medium-voltage AC/DC and DC/DC converters. Consider the 40mΩ on-resistance for efficiency optimization in high-current paths. Evaluate thermal management requirements given the 249W dissipation rating in the TOLL package.

Single FETs, MOSFETs Part Context

This part belongs to Inventchip's Gen 2 SiC MOSFET lineup. The manufacturer operates an IATF 16949-certified wafer fab. The TOLL-8L package offers improved thermal performance compared to traditional TO-247 packages. The series targets high-efficiency power electronics markets.

Single FETs, MOSFETs Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Inventchip technical support for direct replacements or pin-compatible alternatives.
