IXTA220N04T2-7

Single FETs, MOSFETs Overview

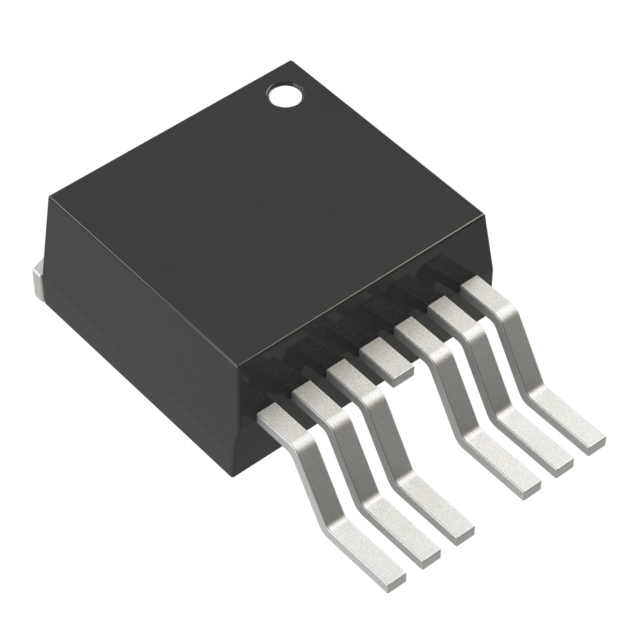

The Littelfuse IXTA220N04T2-7 is an N-channel enhancement mode Power MOSFET utilizing TrenchT2 technology. It features a drain-source breakdown voltage (VDSS) of 40V and a continuous drain current (ID) of 220A at 25°C. The device offers a maximum on-resistance (RDS(on)) of 3.5mΩ. It is housed in a TO-263 (D2PAK) surface-mount package and is avalanche rated for robust operation.

Single FETs, MOSFETs Feature Summary

• Incorporates Littelfuse HiPerFET technology for fast power switching performance
• Features low RDS(on) and gate charge characteristics
• High current capability with up to 600A pulsed rating
• Avalanche rated for enhanced reliability

Single FETs, MOSFETs Applications

• DC-DC converters
• Motor control systems
• Power factor correction circuits
• Industrial motor drives

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix '-7' indicates the tape and reel packaging configuration as per the manufacturer's ordering guide. Confirm the exact thermal resistance values and electrical limits against the latest official datasheet revision, as specifications are subject to change without notice. Ensure compatibility with the intended PCB footprint for the TO-263 package.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring high current handling in low-voltage environments. The low on-resistance minimizes conduction losses, improving overall system efficiency. Consider the thermal management requirements associated with the TO-263 package when designing the heat dissipation strategy for high-duty cycle operations.

Single FETs, MOSFETs Part Context

This part belongs to the Gen2 Series of N-channel Trench Gate MOSFETs from Littelfuse. It is designed to replace multiple parallel low-current devices, allowing for smaller footprints and higher power density. The series aims to improve system reliability and reduce costs through advanced trench gate technology.

Single FETs, MOSFETs Replacement Considerations

Direct substitutes include other parts within the same family such as the IXTA220N04T2 or variants with different packaging suffixes like IXTA220N04T2-13, provided the electrical parameters match the design requirements.
