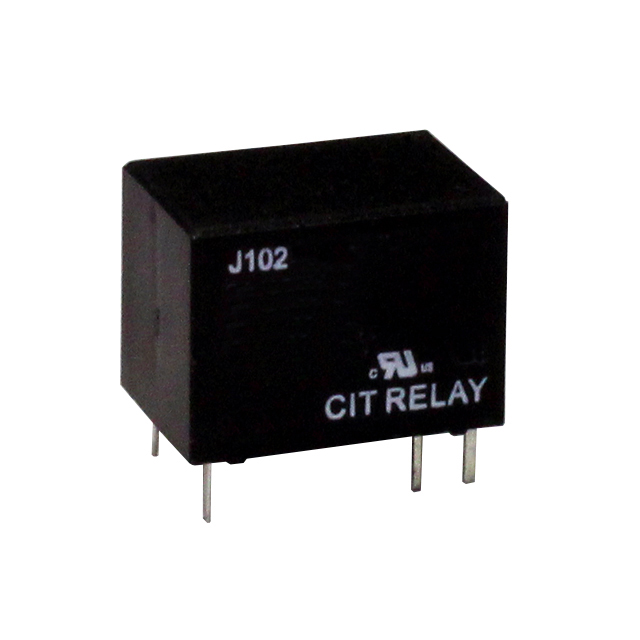

J102K1CS112VDC.36

J102K1CS112VDC.36 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is RELAY GEN PURPOSE SPDT 1A 12V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for J102K1CS112VDC.36

• Description：RELAY GEN PURPOSE SPDT 1A 12V
• Series：J102
• Mfr：CIT Relay and Switch
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：300VAC, 150VDC - Max
• Load - Max Switching：300VA, 150W
• Coil Current：30 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：9 VDC
• Must Release Voltage：1.2 VDC
• Operate Time：5 ms
• Release Time：5 ms
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver (Ag)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for J102K1CS112VDC.36
