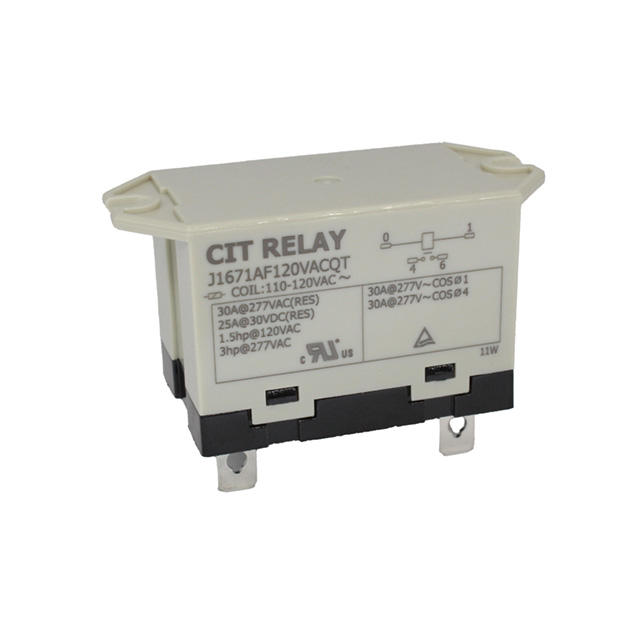

J1671AF120VACQT

J1671AF120VACQT is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is RELAY GEN PURPOSE SPST. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for J1671AF120VACQT

• Description：RELAY GEN PURPOSE SPST
• Series：J167
• Mfr：CIT Relay and Switch
• Package：Tray
• Mounting Type：Chassis Mount
• Coil Voltage：120VAC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：30 A
• Switching Voltage：277VAC, 30VDC - Max
• Load - Max Switching：6600VA
• Coil Current：23.1 mA
• Coil Type：Non Latching
• Features：Test Button
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：84 VAC
• Must Release Voltage：12 VAC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide Indium Oxide (AgSnOInO)
• Approval Agency：cURus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：30 ms
• Release Time：30 ms

Power Relays, Over 2 Amps datasheet and documents for J1671AF120VACQT
