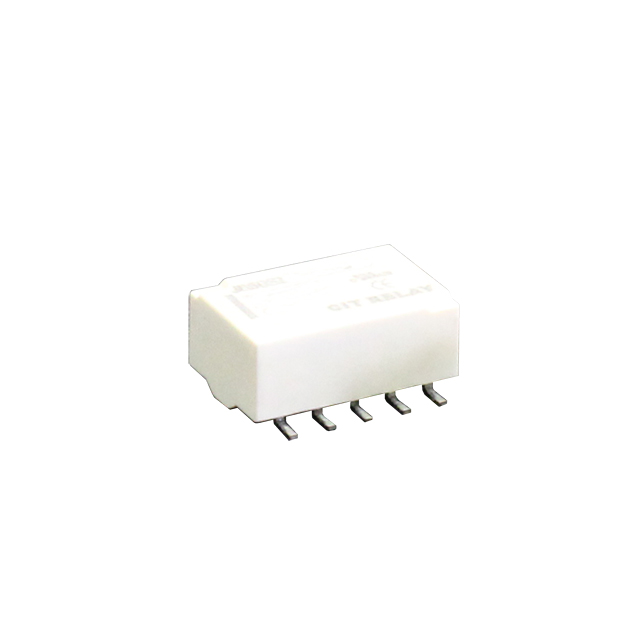

J850SM2CS5VDC

J850SM2CS5VDC is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is RELAY GENERAL PURPOSE DPDT 1A 5V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for J850SM2CS5VDC

• Description：RELAY GENERAL PURPOSE DPDT 1A 5V
• Series：J850SM
• Mfr：CIT Relay and Switch
• Package：Tape & Reel (TR),Cut Tape (CT)
• Mounting Type：Surface Mount
• Coil Voltage：5VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：250VAC, 220VDC - Max
• Load - Max Switching：250VA, 220W
• Coil Current：28.1 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Gull Wing
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：3.75 VDC
• Must Release Voltage：0.5 VDC
• Operate Time：2 ms
• Release Time：1 ms
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Palladium (AgPd), Gold (Au)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for J850SM2CS5VDC
