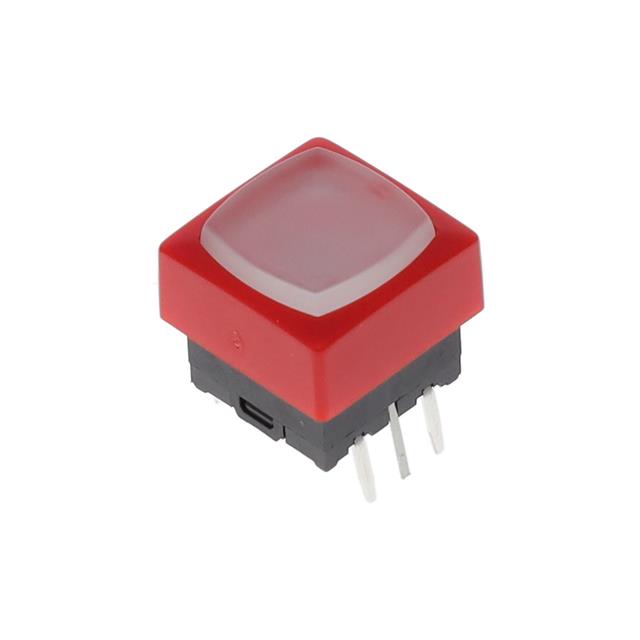

JB15LPC-BC

JB15LPC-BC is listed in the Tactile Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TACTILE SPST-NO 0.05A 24V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for JB15LPC-BC

• Description：SWITCH TACTILE SPST-NO 0.05A 24V
• Series：JB
• Mfr：NKK Switches
• Package：Box
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 24VDC
• Actuator Type：Square Button
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：11.20mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：10.00mm x 10.00mm
• Illumination：Illuminated
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：1.8 VDC
• Operating Force：176gf
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：Process Sealed
• Operating Temperature：-25°C ~ 70°C

Tactile Switches datasheet and documents for JB15LPC-BC
