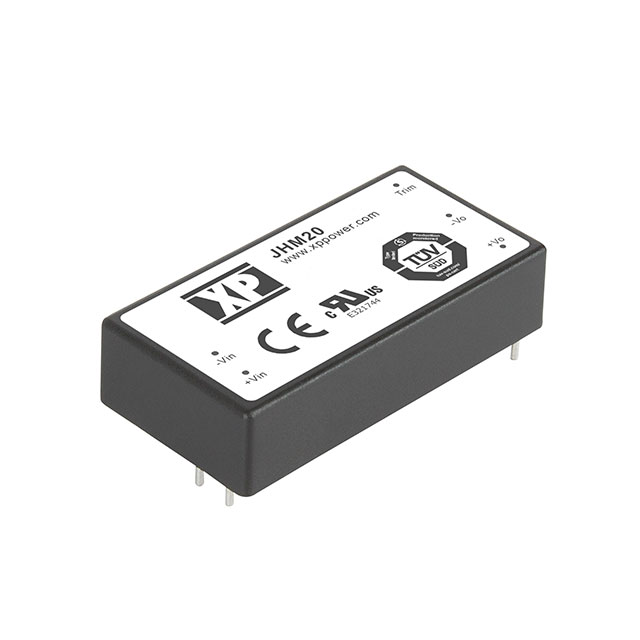

JHM2024D12

JHM2024D12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER +/-12V 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for JHM2024D12

• Description：DC DC CONVERTER +/-12V 20W
• Series：JHM20 (20W)
• Mfr：XP Power
• Package：Box
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：835mA, 835mA
• Power (Watts)：20 W
• Voltage - Isolation：4 kV
• Applications：Medical
• Features：OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module, 5 Leads
• Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for JHM2024D12
