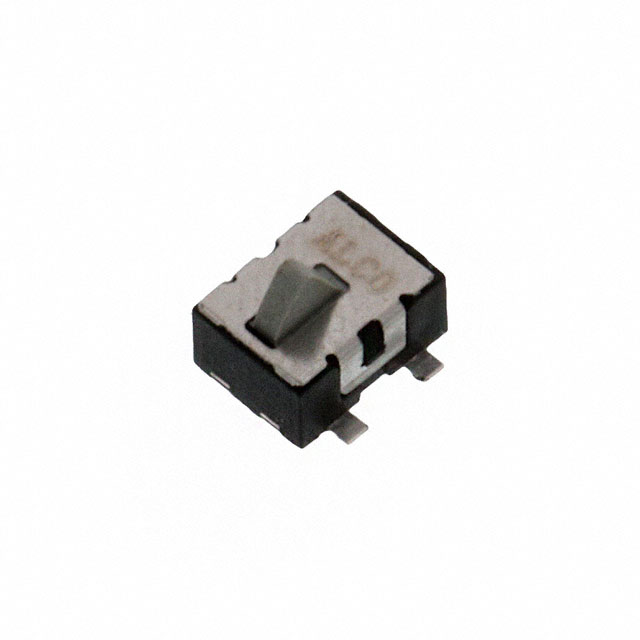

Limit Switches JJEV0UG380NONMRTR product image

JJEV0UG380NONMRTR

$1.07

Description：SWITCH DETECT SPST-NO 0.001A 5V
Series：JJE
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:313348f1a394 Category: Limit Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JJEV0UG380NONMRTR is listed in the Limit Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH DETECT SPST-NO 0.001A 5V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for JJEV0UG380NONMRTR

Description：SWITCH DETECT SPST-NO 0.001A 5V
Series：JJE
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tape & Reel (TR),Cut Tape (CT)
Circuit：SPST-NO
Switch Function：Off-Mom
Current Rating (Amps)：1mA (DC)
Voltage Rating - AC：-
Actuator Type：Angled Toggle (Detector)
Mounting Type：Surface Mount
Termination Style：Gull Wing
Ingress Protection：-
Features：-
Operating Force：60gf
Release Force：-
Operating Position：0.138" (3.5mm)
Pretravel：0.012" (0.3mm)
Differential Travel：-
Overtravel：-
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：5 V

Limit Switches datasheet and documents for JJEV0UG380NONMRTR
