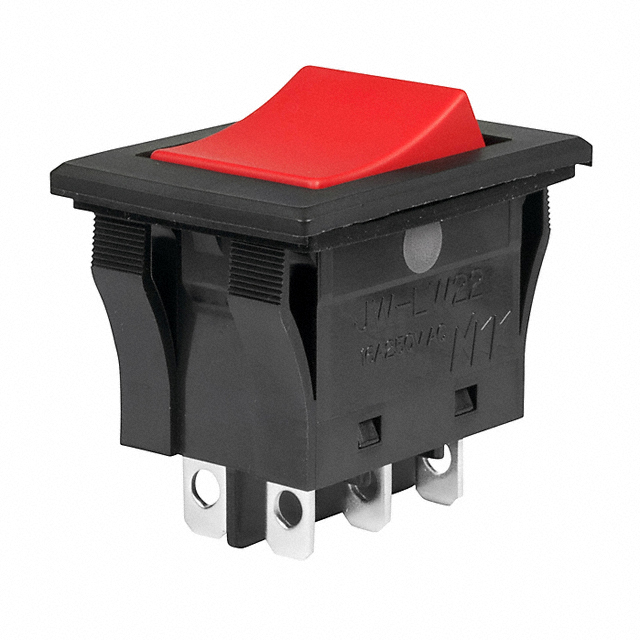

Rocker Switches JWLW22RCA product image

JWLW22RCA

$16.92
  • Description：SWITCH ROCKER DPDT 16A 125V
  • Series：JW
  • Mfr：NKK Switches
  • Package：Bulk

SKU:6f73576756c6 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

JWLW22RCA is listed in the Rocker Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH ROCKER DPDT 16A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for JWLW22RCA

  • Description：SWITCH ROCKER DPDT 16A 125V
  • Series：JW
  • Mfr：NKK Switches
  • Package：Bulk
  • Mounting Type：Panel Mount, Snap-In
  • Circuit：DPDT
  • Switch Function：On-On
  • Current Rating (Amps)：16A (AC)
  • Voltage Rating - AC：125 V
  • Voltage Rating - DC：-
  • Actuator Type：Concave (Curved)
  • Color - Actuator/Cap：Red
  • Actuator Marking：No Marking
  • Illumination Type, Color：-
  • Illumination Voltage (Nominal)：-
  • Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
  • Ingress Protection：IP67 - Dust Tight, Waterproof
  • Features：Epoxy Sealed Terminals
  • Panel Cutout Dimensions：Rectangular - 30.70mm x 20.50mm
  • Operating Temperature：-25°C ~ 85°C
  • Approval Agency：CSA, UL, VDE

Rocker Switches datasheet and documents for JWLW22RCA

JWLW22RCA
