KB 04

Headers, Receptacles, Female Sockets Overview

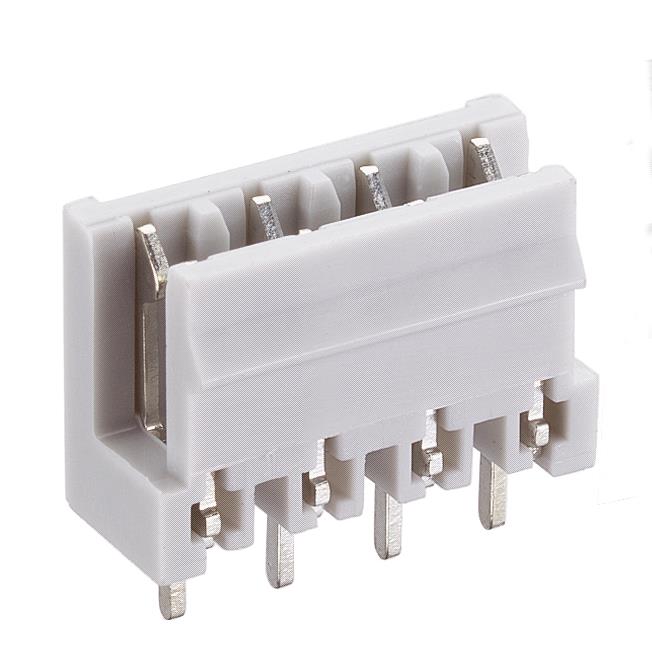

The Lumberg KB 04 is a single-row, upright PCB header connector from the Minimodul series. It features a 5.0 mm pitch and four positions for wire-to-board connections. The component utilizes tin-plated brass contacts housed in a fiber-filled polyamide shell. Designed for through-hole mounting with solder termination, it supports a rated current of 5A and a voltage of 160V. Operating temperatures range from -40°C to 120°C. It complies with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row upright configuration for space-efficient board mounting
• Fiber-filled polyamide housing provides structural stability
• Tin-plated brass contacts ensure reliable conductivity
• Stackable design capability according to division

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Appliance internal wiring
• Sensor and actuator interfaces
• General electronic equipment interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific orientation (upright vs. right-angle) and contact plating requirements against the target application datasheet. Confirm that the 5.0 mm pitch matches the PCB footprint layout precisely. Ensure the operating temperature range of -40°C to 120°C meets environmental constraints. Check compliance with relevant safety standards such as IEC 60335-1 if used in household appliances.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a rigid, single-row connection is required at a 5.0 mm spacing. The upright form factor suits applications where vertical clearance is available but horizontal space is limited. Consider the 5A current rating for power distribution or signal transmission within these limits. Verify that the through-hole soldering process aligns with the manufacturing assembly capabilities.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Lumberg Minimodul series, known for compact connectivity solutions. It serves as a male header counterpart to compatible socket receptacles. The design emphasizes durability in industrial environments while maintaining a low profile. It is distinct from screw-terminal blocks like the KRESS series due to its direct PCB integration method.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should verify mechanical dimensions and electrical ratings before considering alternative manufacturers.
