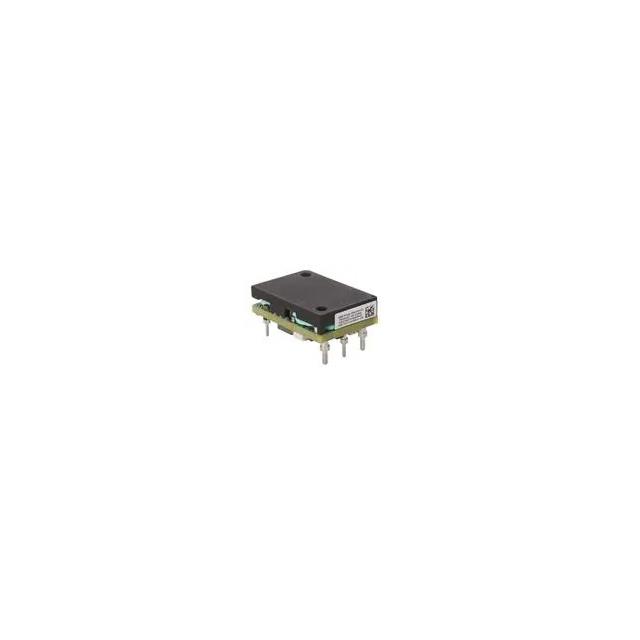

KBVW010A0B641Z

KBVW010A0B641Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is BUS CONVERTER, 120W SIXTEENTH-BR. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for KBVW010A0B641Z

• Description：BUS CONVERTER, 120W SIXTEENTH-BR
• Series：Barracuda™ KBVW010A0B
• Mfr：OmniOn Power™
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：120 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：92.50%
• Mounting Type：Through Hole
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.42" H (33.0mm x 22.9mm x 10.7mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active Low
• Approval Agency：CE
• Standard Number：60950-1; 62368-1
