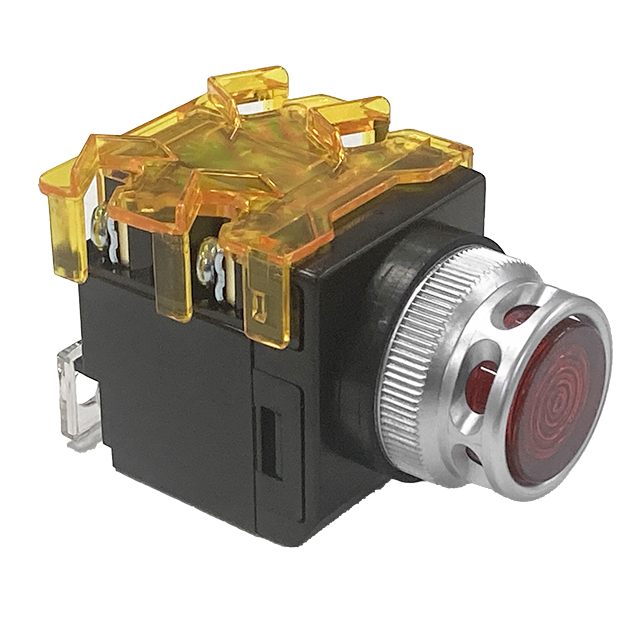

Pushbutton Switches KH-511DL-24V-R product image

KH-511DL-24V-R

$13.50

Description：25mm 1NO 1NC Push button switch
Series：KH-51
Mfr：KOINO
Package：Bulk

SKU:57279c1efa2d Category: Pushbutton Switches Brand: KOINO

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

KH-511DL-24V-R is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists KOINO. Its product description is 25mm 1NO 1NC Push button switch. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for KH-511DL-24V-R

Description：25mm 1NO 1NC Push button switch
Series：KH-51
Mfr：KOINO
Package：Bulk
Mounting Type：Panel Mount
Type：Illuminated
Circuit：DPST-NO/NC
Switch Function：On-Mom, Off-Mom
Current Rating (Amps)：3A (AC), 270mA (DC)
Actuator Type：Round, Button
Actuator Marking：-
Color - Actuator/Cap：Red
Illumination Type, Color：LED, Red
Illumination Voltage (Nominal)：24 VDC
Termination Style：Screw Terminal
Ingress Protection：IP40
Panel Cutout Dimensions：Circular - 25.20mm Dia
Operating Temperature：-
Voltage Rating - DC：250 V
Voltage Rating - AC：250 V

Pushbutton Switches datasheet and documents for KH-511DL-24V-R

KH-511DL-24V-R
