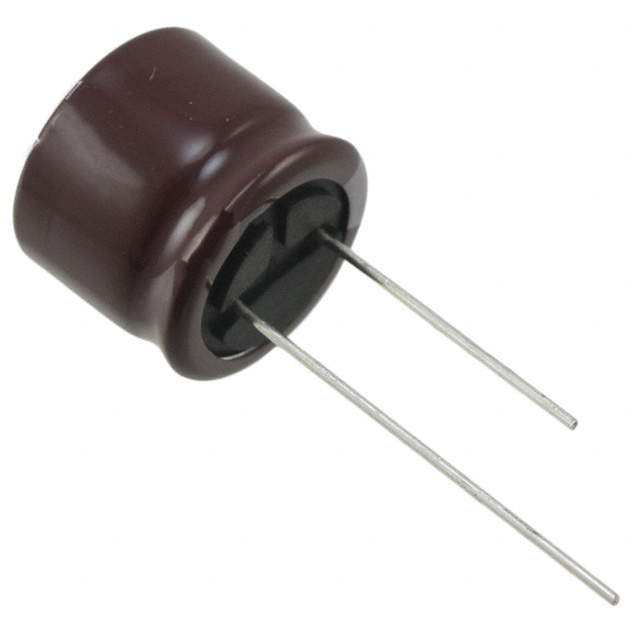

KY16VB472M18X25LL

KY16VB472M18X25LL is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 4700UF 20% 16V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for KY16VB472M18X25LL

• Description：CAP ALUM 4700UF 20% 16V RADIAL
• Series：KY
• Mfr：Chemi-Con
• Package：Bulk
• Capacitance：4700 µF
• Tolerance：±20%
• Voltage - Rated：16 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：10000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：2.669 A @ 120 Hz
• Ripple Current @ High Frequency：3.14 A @ 100 kHz
• Lead Spacing：0.295" (7.50mm)
• Size / Dimension：0.709" Dia (18.00mm)
• Height - Seated (Max)：0.984" (25.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：19 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for KY16VB472M18X25LL
