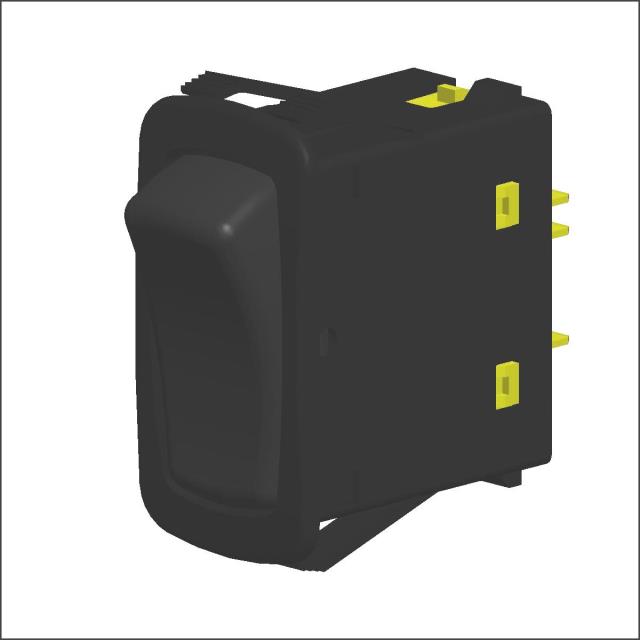

Rocker Switches L16D1S001-AZZ00-000 product image

L16D1S001-AZZ00-000

$10.66

Description：SWITCH ROCKER SPDT 20A 12V
Series：L
Mfr：Carling Technologies
Package：Bulk

SKU:b134ec8173cd Category: Rocker Switches Brand: Carling Technologies

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

L16D1S001-AZZ00-000 is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Carling Technologies. Its product description is SWITCH ROCKER SPDT 20A 12V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for L16D1S001-AZZ00-000

Description：SWITCH ROCKER SPDT 20A 12V
Series：L
Mfr：Carling Technologies
Package：Bulk
Mounting Type：Panel Mount, Snap-In
Circuit：SPDT
Switch Function：On-Off-On
Current Rating (Amps)：20A (DC)
Voltage Rating - AC：-
Voltage Rating - DC：12 V
Actuator Type：Concave (Curved)
Color - Actuator/Cap：Black
Actuator Marking：No Marking
Illumination Type, Color：-
Illumination Voltage (Nominal)：-
Termination Style：Quick Connect - 0.250" (6.3mm)
Ingress Protection：IP67 - Dust Tight, Waterproof
Features：-
Panel Cutout Dimensions：Rectangular - 44.04mm x 22.02mm
Operating Temperature：-40°C ~ 85°C
Approval Agency：-

Rocker Switches datasheet and documents for L16D1S001-AZZ00-000

L16D1S001-AZZ00-000
